2.2 ISUZU D-MAX
DL20
Available from
£35,795 CVOTR + VAT
AVAILABLE FROM
£35,795 CVOTR + VAT

ENHANCED TOUGHNESS

ENHANCED TOUGHNESS

The Isuzu D-Max DL20 is packed with rugged efficiency for every job, big or small.

Available in both manual or automatic transmission, it’s not just about what the Isuzu D-Max DL20 does, but the way it goes about it. Across track, field, construction site and on road, the 2.2-litre turbo diesel engine (Euro 6 compliant) delivers 400 Nm of torque to carry over a tonne of payload and pull 3.5 tonnes with smooth, responsive acceleration.

The rear diff-lock and ‘shift-on-the-fly’ 4WD system help the driver keep control whatever the terrain. Plus, there’s a whole host of smart features that make Isuzu D-Max DL20 the workmate that has your back.

Ready to test drive the Isuzu D-Max DL20?

2.2 Turbo

diesel

VAT BACK

qualified

1 tonne

payload

3.5 tonnes

towing capacity

Features

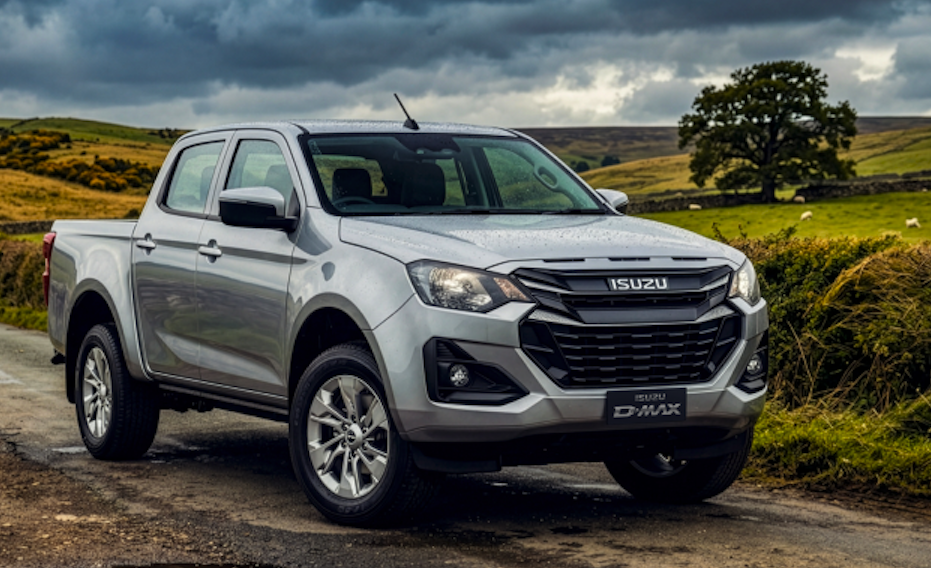

Engine

WE PUT MORE IN. YOU GET MORE OUT.

A 2.2-litre turbo diesel engine (Euro 6 compliant) delivers 400 Nm of torque to carry over a tonne of payload and pull 3.5 tonnes with smooth, responsive acceleration.

Meeting the latest emissions standards, the Isuzu D-Max now also enjoys better fuel economy, and an optional eight-speed automatic transmission gives more choice to suit your driving style.

Models are equipped with Rough Terrain Mode (RTM), an electronic off-road traction control aid that maximises torque-transfer and driveability in technical, slippery, and rough conditions.

Exterior

ENHANCED STYLING

Bold accents and sleek lines give the reinforced Isuzu D-Max credibility from every angle, together with exterior enhancements that are not just for show.

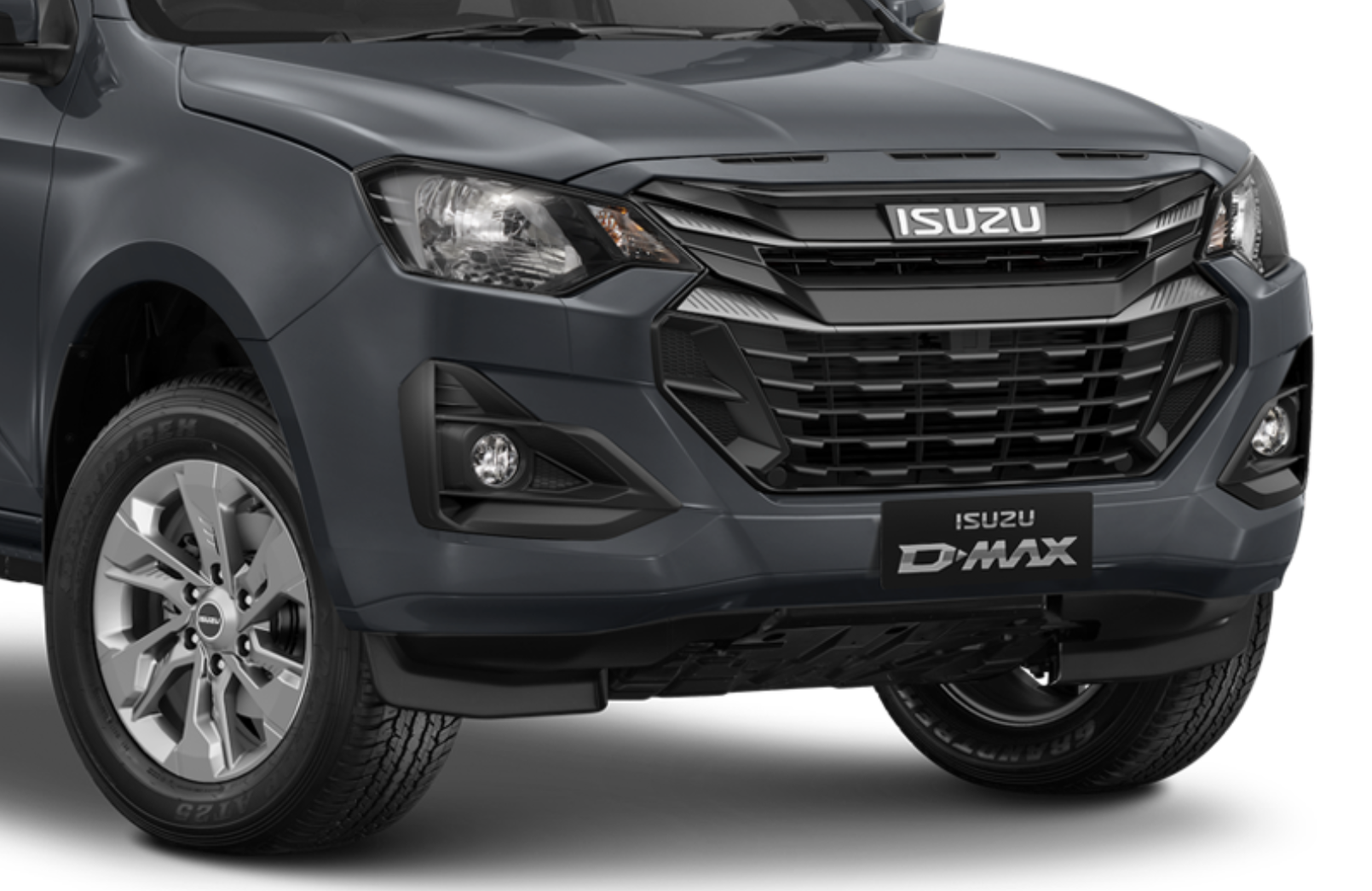

The redesigned front radiator grille is complemented by newly designed Bi-LED headlights and front fog lamp bezels. Upgraded alloy wheels are finished off with Dunlop 265/60R18 low-rolling resistance tyres. New surround view cameras optimise safety by deploying digital cameras on the front radiator grille, tailgate and wing mirrors.

Interior

ENHANCED COMFORT

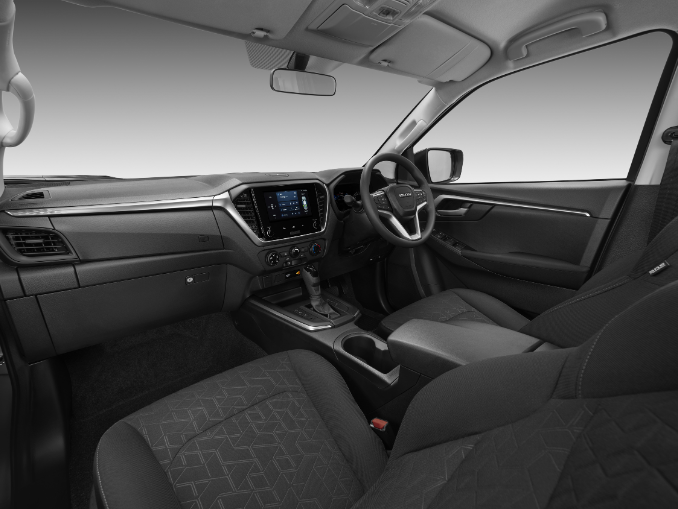

Inside the expansive cabin, you’ll discover sophistication and convenience, with new high-grade cloth, as well as heated front seats and dual zone climate control for optimal comfort regardless of weather conditions.

Combined with a leather telescopic steering wheel and 8-way electrically adjustable driver’s seat, the New Isuzu D-Max offers a tailored driving experience that enhances control and reduces fatigue.

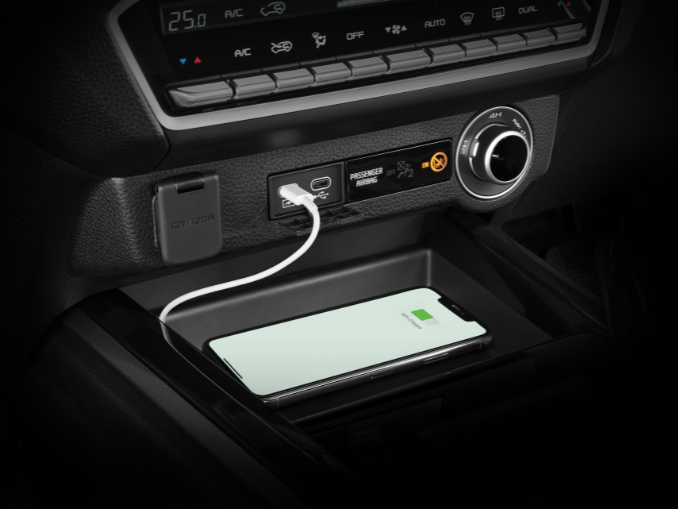

Meanwhile, wireless Apple CarPlay™ & Android Auto™ from the multi-function colour touchscreen keep you well informed and high-quality speakers keep you fully entertained.

Colours & Cabs

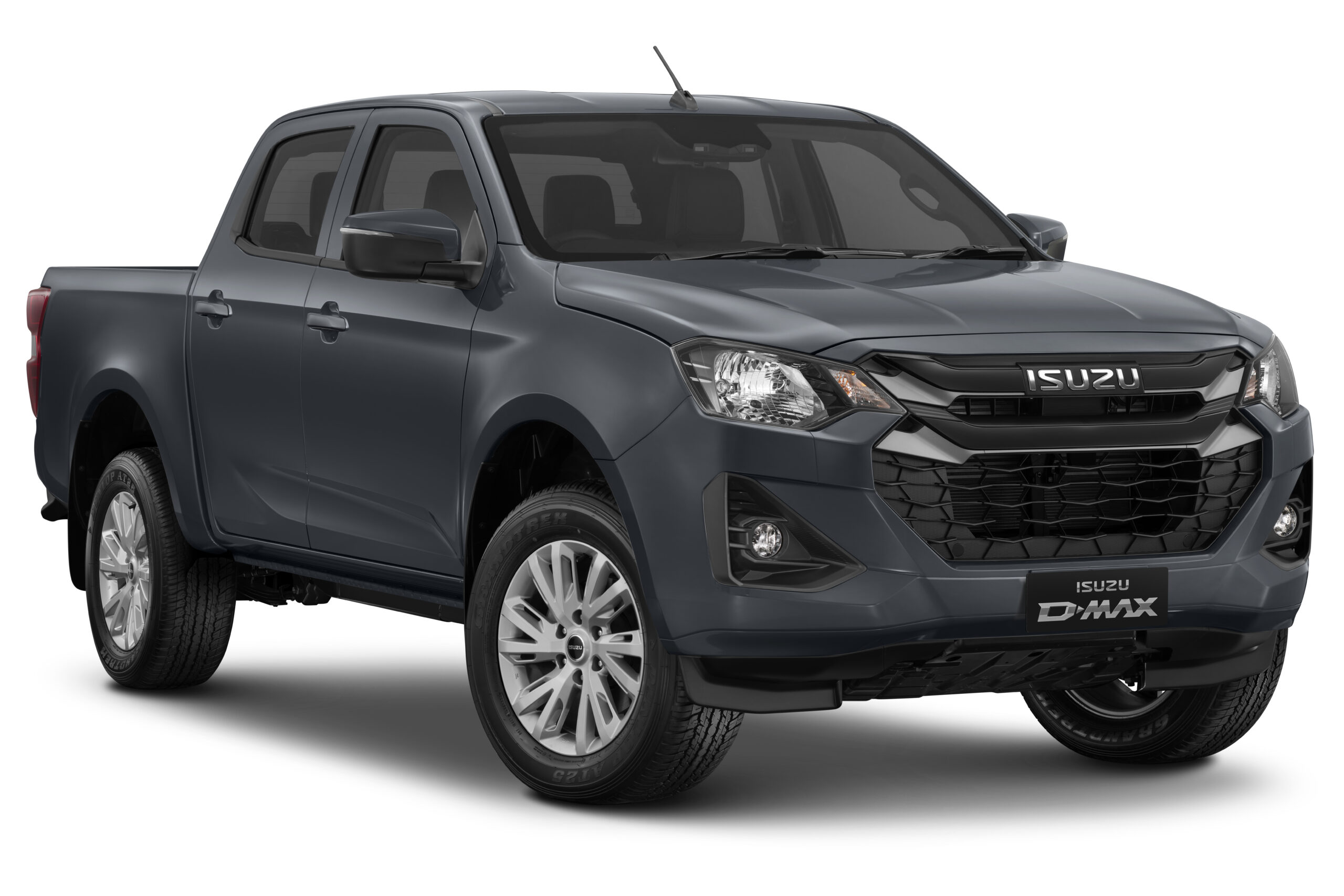

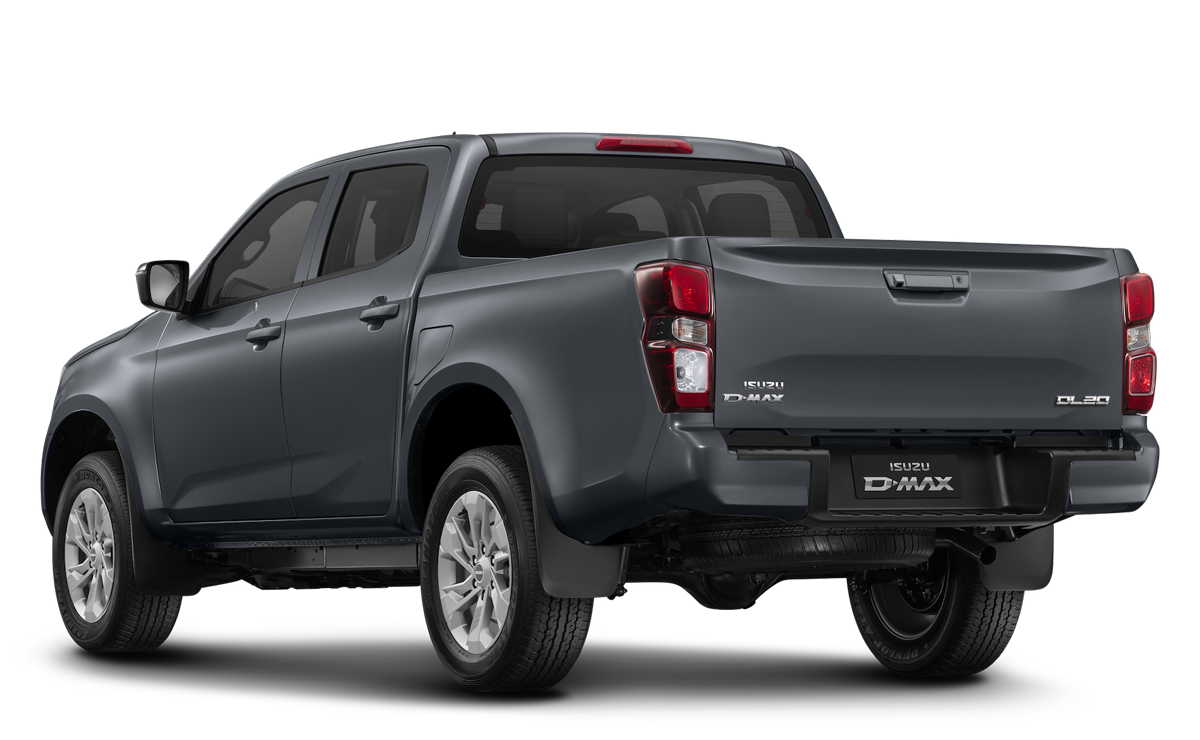

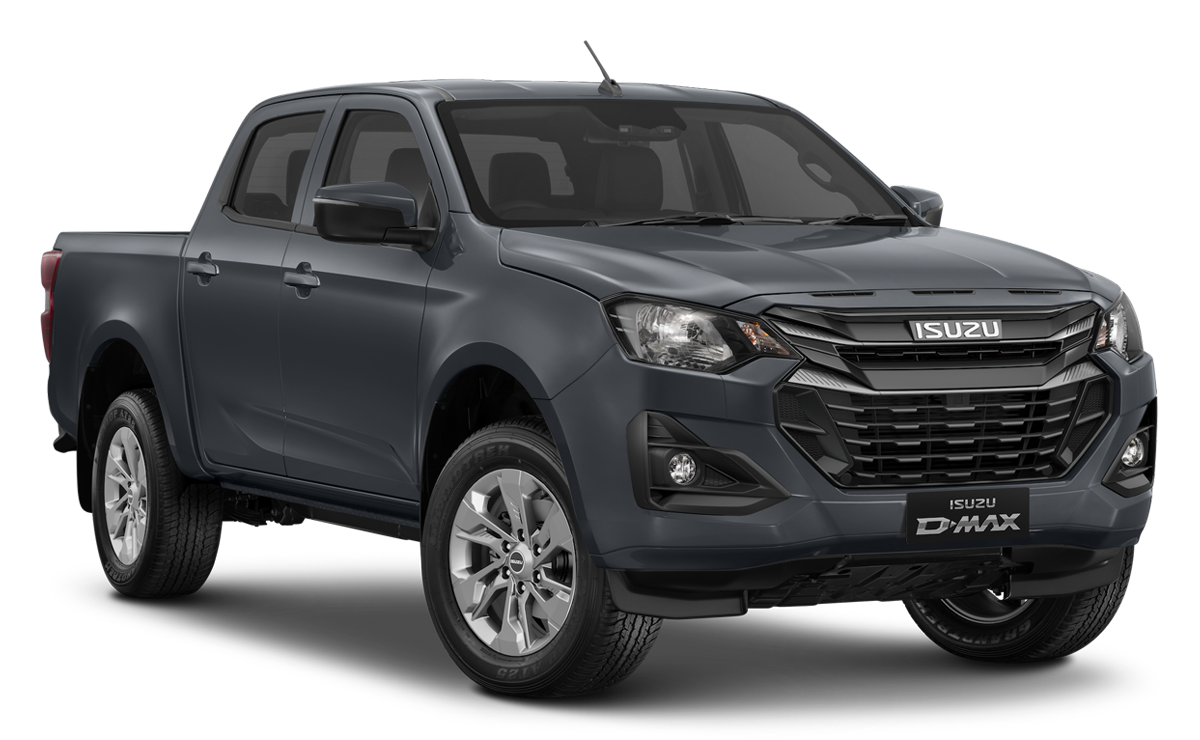

Isuzu D-Max DL20 Obsidian Grey Isuzu D-Max DL20 Obsidian Grey rear Obsidian Grey

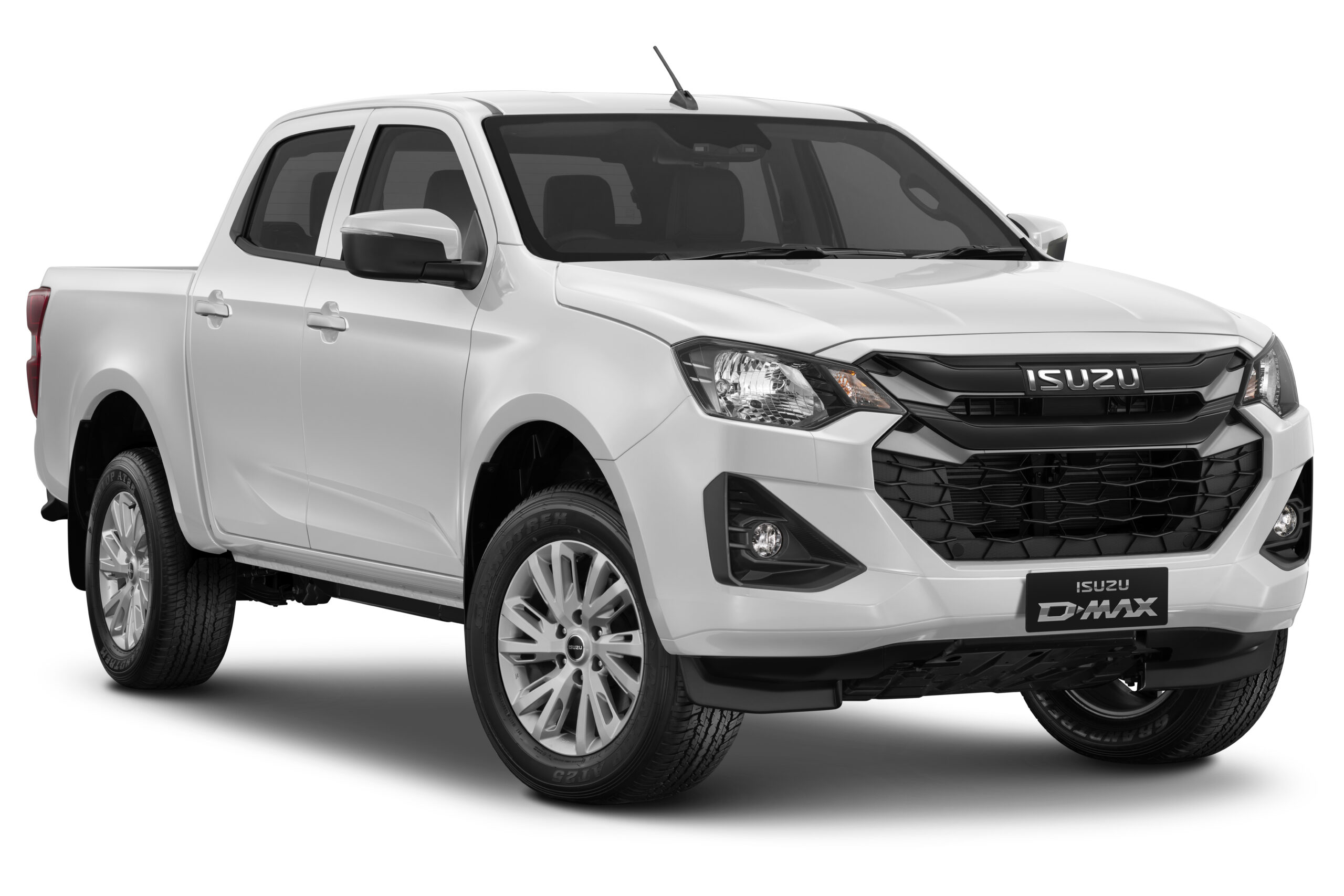

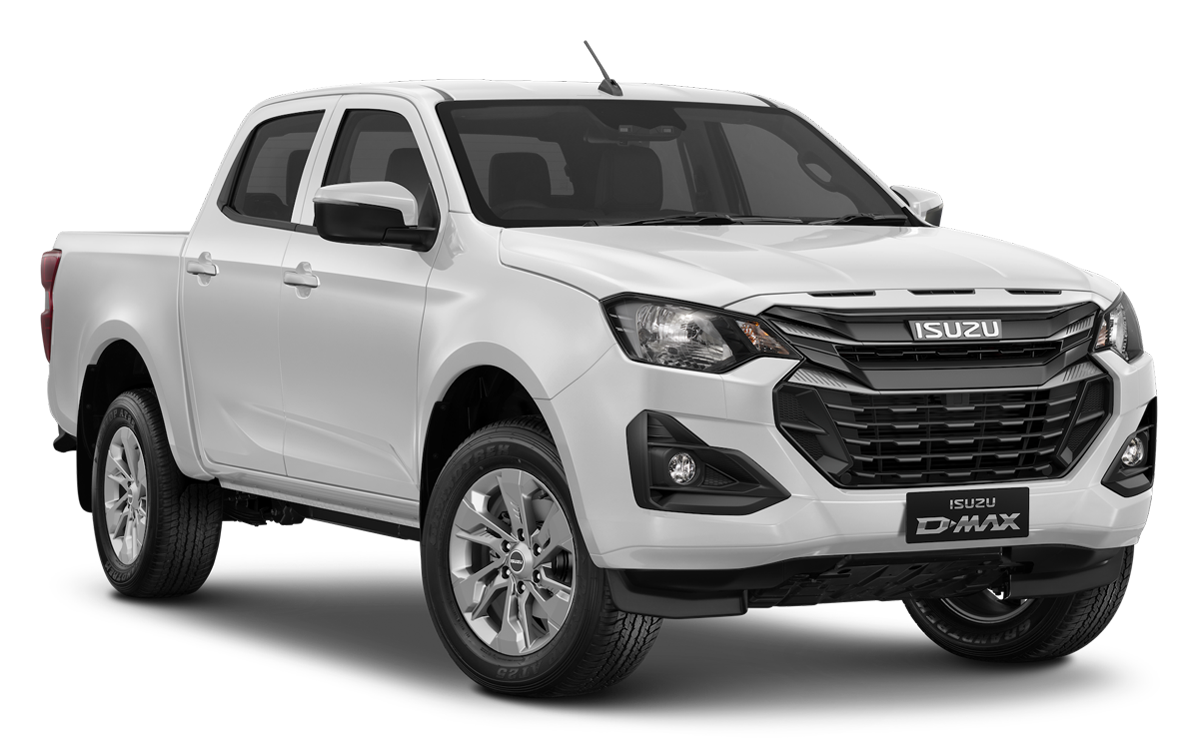

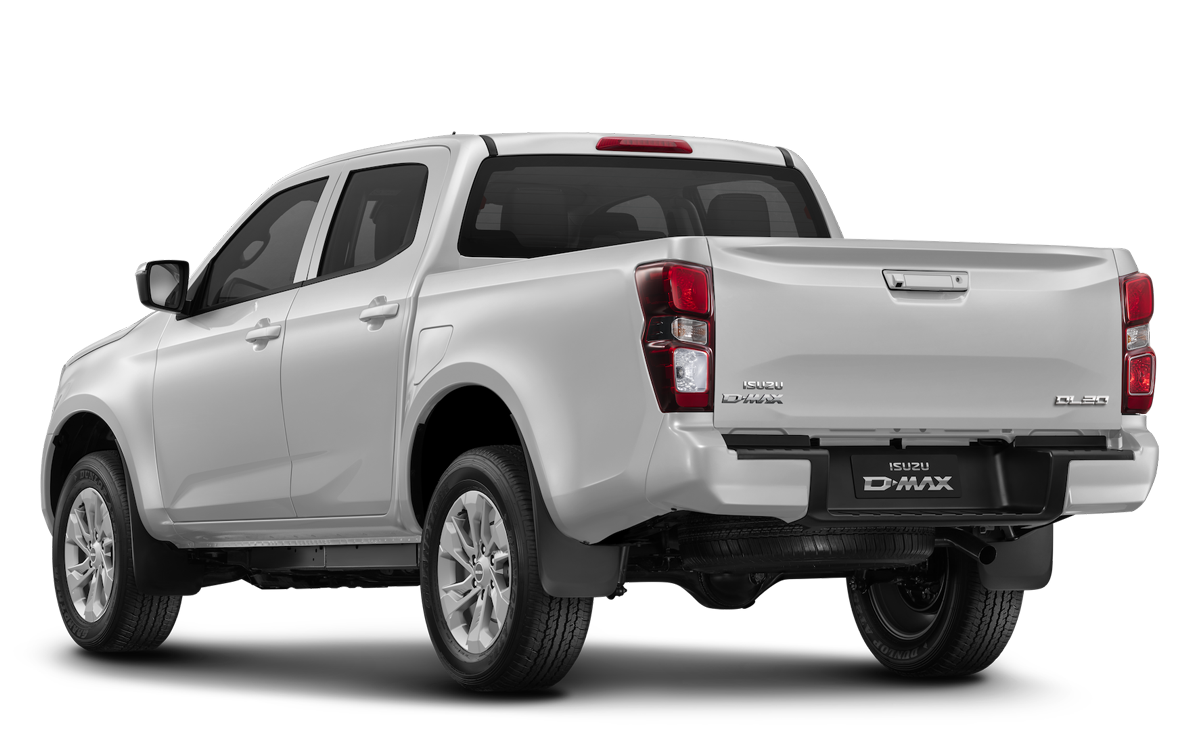

Isuzu D-Max DL20 Splash White Isuzu D-Max DL20 Splash White rear Splash White

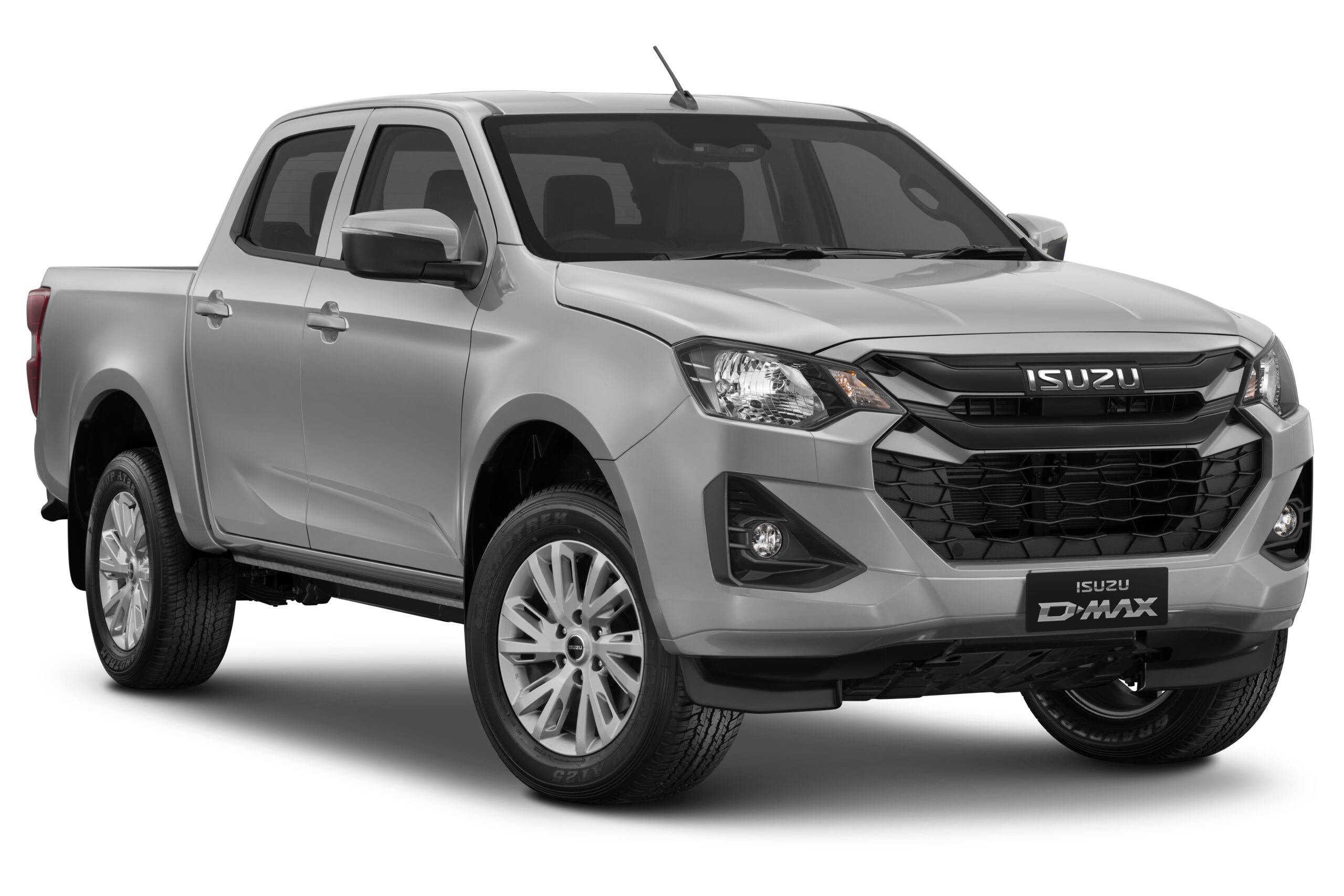

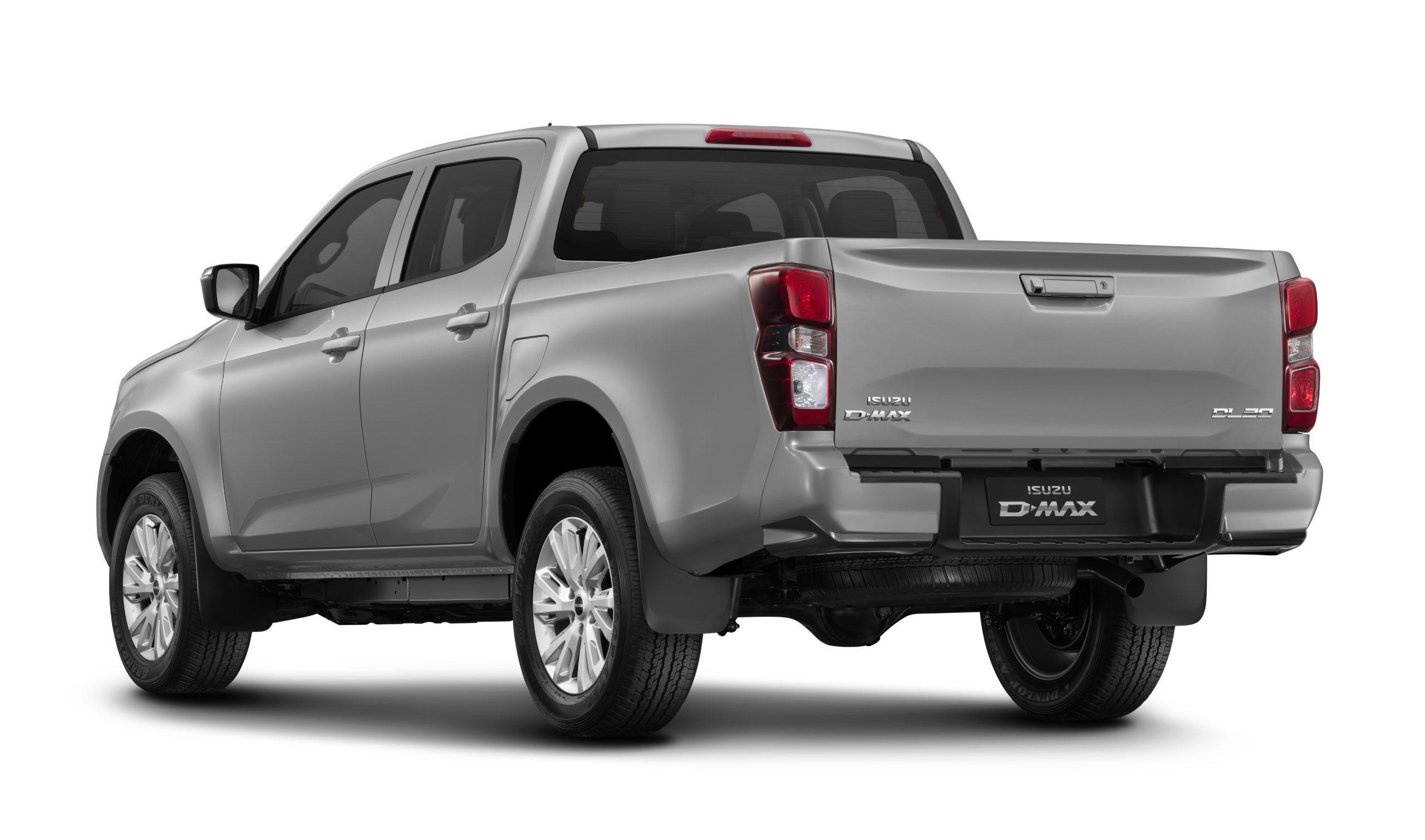

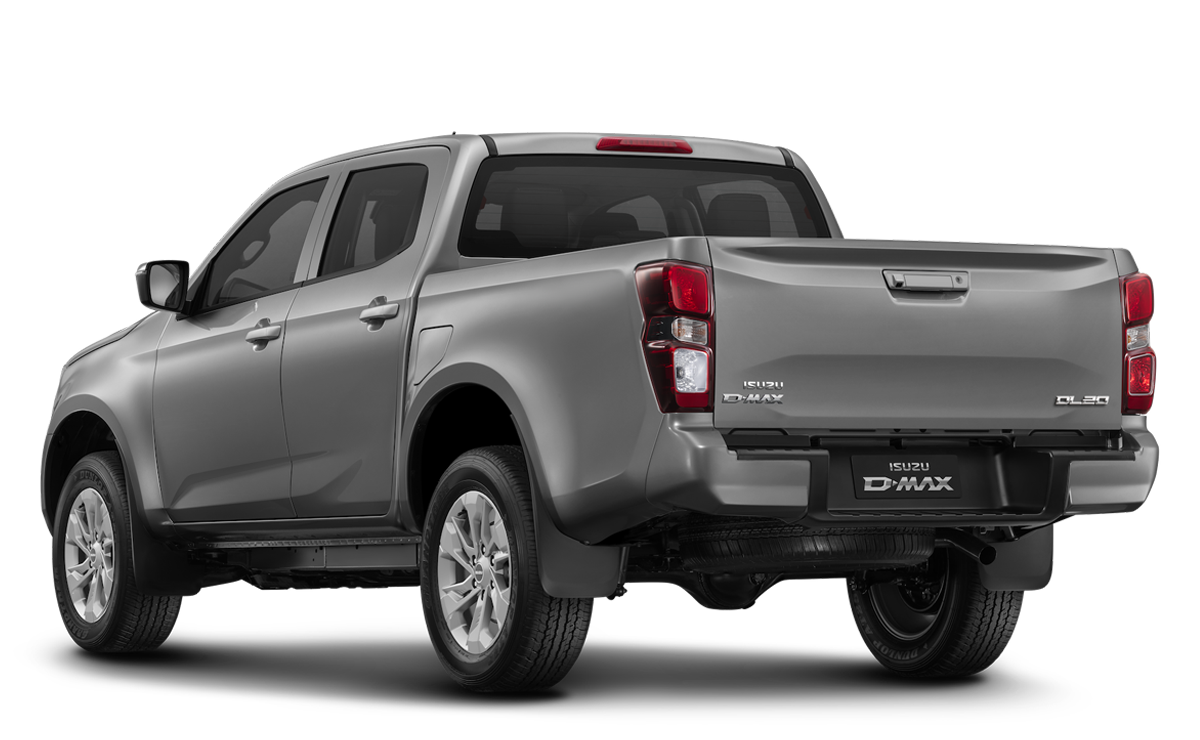

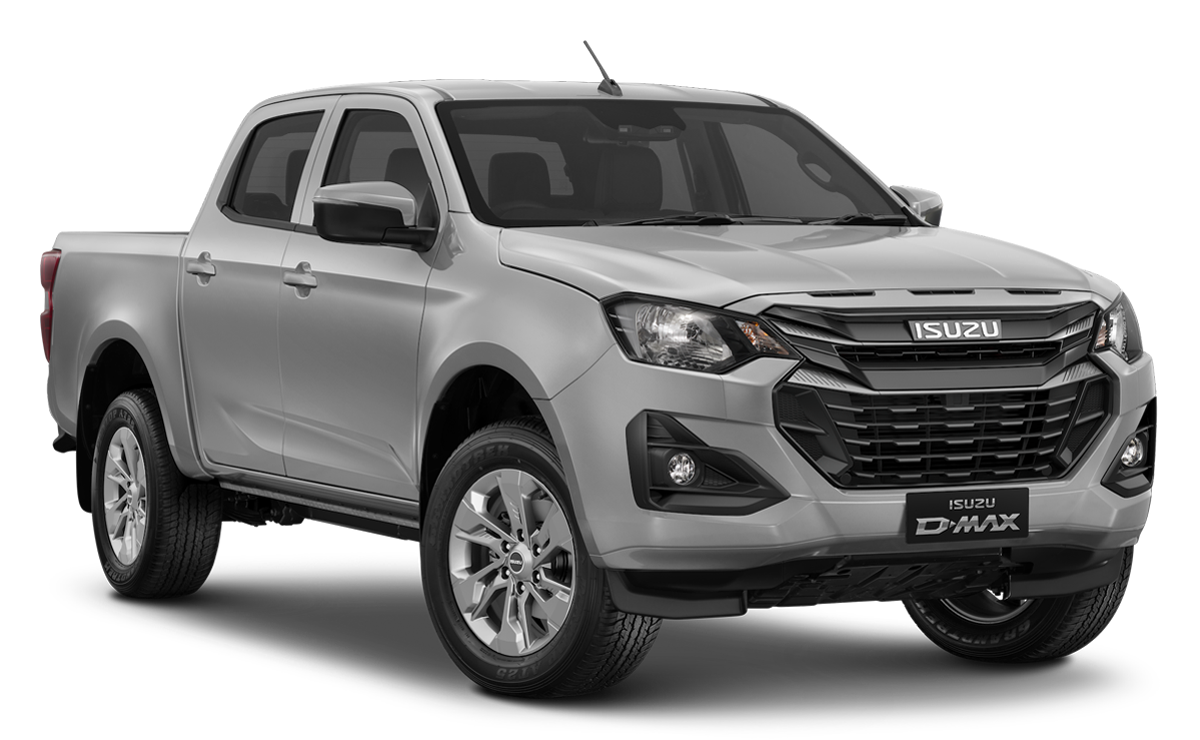

Isuzu D-Max DL20 Mercury Silver Isuzu D-Max DL20 Mercury Silver rear Mercury Silver
DOUBLE CAB
Our most versatile cab type seats two passengers in the front and three in the back. The standard size load bed will accommodate all of your tools and rear ISOFIX points mean it works as well for family use as it does for your business.

Dimension & Specification

Exterior
DL20 ManualDl20 Auto
Halogen HeadlightsStandardStandard
Automatic Headlamp with On-Off Automatic High BeamStandardStandard
Headlamp Left "On" Audible WarningStandardStandard
Follow Me Home HeadlampStandardStandard
Halogen Daytime Running LightsStandardStandard
Halogen Front Fog LampStandardStandard
Rear Fog LampStandardStandard
Door Mirrors with Side Turn LampStandardStandard
Center High Mount Stop LampStandardStandard
New Design Onyx Black Radiator GrilleStandardStandard
Body Coloured Front BumperStandardStandard
Body Coloured Rear BumperStandardStandard
Power Folding, Heated, Body-Coloured Door Mirrors with Side Turn Lamp And Blind Spot MonitorStandardStandard
Powered Windows With Jam ProtectionStandardStandard
Cargo Box with Front & Rear Inner Hooks (4x)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Wheels
DL20 ManualDL20 Auto
Tyres: 265/60R18 110H : A/T Pattern AT31 [Dunlop]StandardStandard

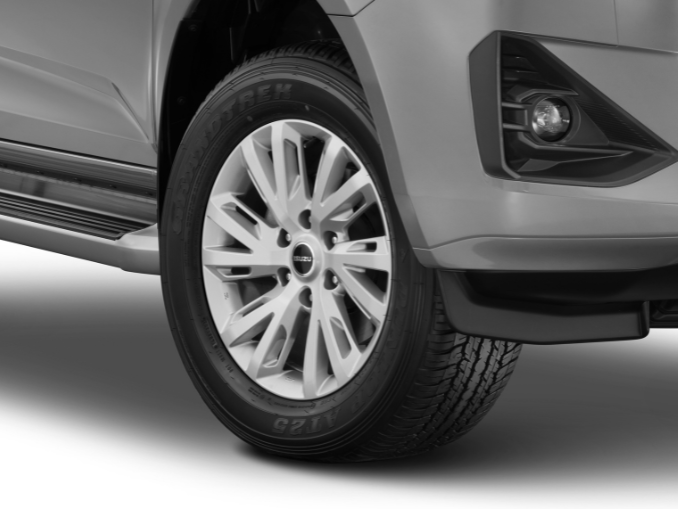

18” Standard Silver Alloy Wheels: 18"X7.5J-33 (Spoke Type)StandardStandard
Full Size Spare WheelStandardStandard
Tyre Pressure Monitoring Sensor (TPMS)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Interior
DL20 ManualDL20 Auto
Dashboard Upper Centre Storage with Lid StandardStandard
Utility Box On Glove BoxStandardStandard
2 Cup HoldersStandardStandard
Centre Storage Compartment with LidStandardStandard
Reading LampStandardStandard
Sun Glasses HolderStandardStandard
2x Ignition Keys with Keyless & Immobilizer FunctionStandardStandard
Roof LampStandardStandard
Front Reading LampStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Entertainment
DL20 ManualDL20 Auto
7" Driver Instrument Cluster Colour DisplayStandardStandard

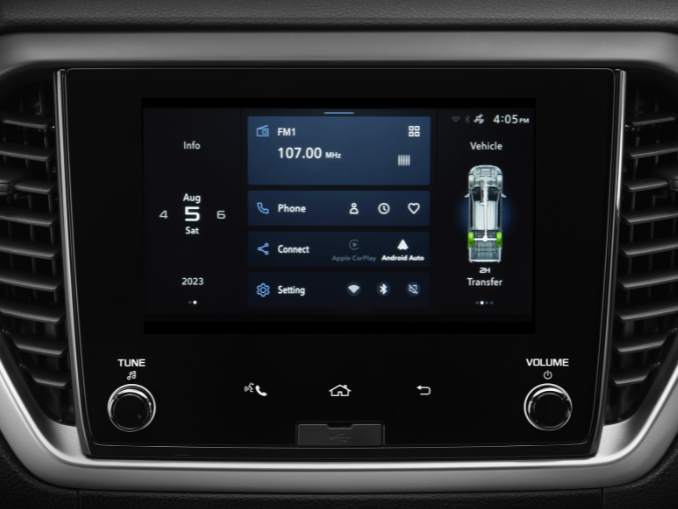

8" Centre Display Audio, with Android Auto™ / Apple Carplay™, with WiFi & BluetoothStandardStandard
AM, FM & DAB RadioStandardStandard
12V Socket at FrontStandardStandard
Four SpeakersStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Comfort & Convenience
DL20 ManualDL20 Auto

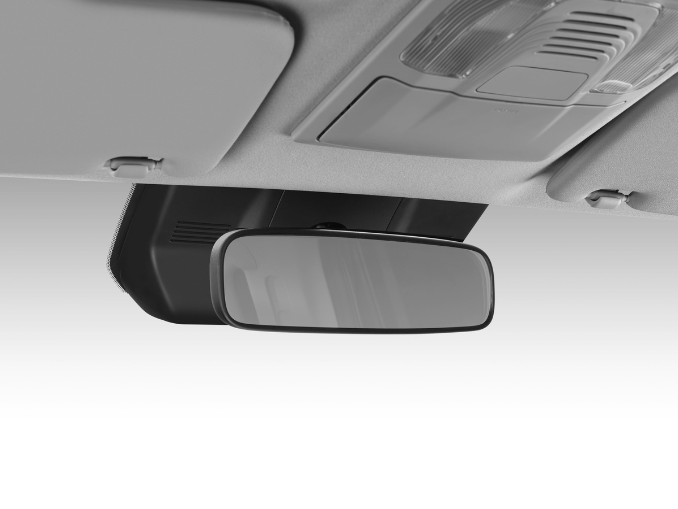

Anti-Glare Inside Rear View Mirror with Day & Night SwitchStandardStandard
Child Lock at Rear DoorStandardStandard
Grab Handles at Front - Folding TypeStandardStandard
Grab Handles at Rear - Folding Type with 2 Coat HooksStandardStandard
Driver & Passenger Sun VisorStandardStandard
Driver Sun Visor with Card HolderStandardStandard
Auto Wiper with Rain Sensor SystemStandardStandard
Rear Window DefoggerStandardStandard
Remote Locking & Unlocking (Via Key Buttons) StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Climate Control
DL20 ManualDL20 Auto
Manual Air ConditioningStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Advanced Driver Assist Systems*3
DL20 ManualDL20 Auto
Rear View CameraStandardStandard
Rear Parking SensorsStandardStandard
AEB (Autonomous Emergency Brake)StandardStandard
FCW (Forward Collision Warning)StandardStandard
BOA (Brake Over Ride Accelerator)StandardStandard
Pedal Misapplication Mitigation (Auto Transmission Only)-Standard
Speed Assistance System (Manual Speed Limiter, Traffic Sign Recognition, Intelligent Speed Limiter)5StandardStandard
Radar Function (Blind Spot Monitor, Rear Cross Traffic Alert/Brake), with Auto Off when Towing (Option with Trailer Wiring)StandardStandard
Lane Support System (Lane Departure Warning / Lane Departure Prevention / Emergency Lane Keeping / Lane Keep Assist System / Attention Assist)StandardStandard
Intelligent Adaptive Cruise Control (Iacc)StandardStandard
Driver MonitoringStandardStandard
Ess (Emergency Stop Signal)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Safety & Security
DL20 ManualDL20 Auto
8 x AirbagsStandardStandard
Front Passenger Airbag Switch-OffStandardStandard
Front Seatbelts (3 Points) with Pre-TensionerStandardStandard
Rear Outer Seats Seatbelts (3 Points) with Pre-TensionerStandardStandard
Rear Middle Seat Seatbelt (3 Points)StandardStandard
Front Seats Seatbelt Unfastened ReminderStandardStandard
Rear Seats Seatbelt Unfastened ReminderStandardStandard
Front Passenger Seat with Occupant Detection SensorStandardStandard
Rear Seats With Occupant Detection SensorStandardStandard
Child Seat Isofix & Top Tether (Rear Outer Seats)StandardStandard
Emergency Call (ECALL)StandardStandard
Anti-Theft System with Alarm, Dead Lock, ImmobiliserStandardStandard
Key Left in Cabin Audible WarningStandardStandard
Remote Key Auto Re-LockStandardStandard
Auto Release Door Lock After Crash (When Airbag Deploy)StandardStandard
Front Brake Power Disc : 17"StandardStandard
Rear Brake Power Drum : 15"StandardStandard
Electronic Stability Control (ESC) With Hill Start Assist (HSA) / Traction Control / TSC & Rough Terrain Mode & Control SwitchStandardStandard
HDC (Hill Descent Control) with SwitchStandardStandard
Multi Collision Brake (MCB)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Engine
DL20 ManualDL20 Auto
Engine TypeRZ4FRZ4F
Arrangement Cylinders4, In line4, In line
Firing Order1-3-4-21-3-4-2
Bore mm8383
Stroke mm100100
Compression15.915.9
Engine Capacity cm321642164
Idle Speed750+/- 25750+/- 25
Fuel Tank Capacity Litres (Gal)76 (16.72)76 (16.72)
AdBlue tank capacity litres (Gal)14.5 (3.19)14.5 (3.19)

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Performance
DL20 ManualDL20 Auto
Net Power kw120 @ 3600120 @ 3600
Net Power PS 163.15 @3600163.15 @3600
Torque Nm 400 @ 2000 - 2500400 @ 2000 - 2500
Maximum Speed (mph)112112
Acceleration (0-62mph) sec1212
Max. Veh. Spd. mph112112

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Gear Ratios
Double CabDouble Cab (Auto)
14.5084.903
22.4493.120
31.1742.166
411.597
50.7361.312
60.5781
7N/A0.776
8N/A0.651
Reverse4.1934.050
Final Drive3.9093.583

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Fuel Consumption WLTP (MPG)*1
Double CabDouble Cab (Auto)
Low10.411.9
Mid8.08.2
High7.17.4
Extra-High8.78.9
Combined8.38.7

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

CO2 Emissions g/km 1
Double CabDouble Cab (Auto)
LOW273312
MID210214
HIGH185194
EXTRA-HIGH229234
COMBINED217228

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Dimensions
Double CabDouble Cab (Auto)
Length mm52805280
Width mm18701870
Height mm17901790
Front Overhang mm905905
Rear Overhang mm12501250
Wheelbase mm31253125
Track (Front & Rear) mm15701570
Ground Clearance mm (Rear Axle)240240
Approach Angle (deg.)30.530.5
Departure Angle (deg.)24.224.2
Ramp Angle (deg.)22.922.9
Internal Bed Length (mm)16751675

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Weights
Double CabDouble Cab (Auto)
Kerb Weight kg20152045
Gross Vehicle Weight kg31003100
Payload*2 kg10851055
Max Front Axle kg14501450
Max Rear Axle kg19101910
Trailer Weight Braked kg35003500
Trailer Weight Unbraked kg750750
Nose Weight kg245245
Gross Train Weight kg60006000

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Wheels & Tyres
Double CabDouble Cab (Auto)
Tyres265/60R18265/60R18
WheelsAlloy (18 x 7.5J)Alloy (18 x 7.5J)

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Insurance Groups
Double CabDouble Cab (Auto)
Insurance Group40A40A

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Prices
Double CabDouble Cab (Auto)
Basic Retail£34,680.00£36,680.00
Delivery to Dealer Premises & No. Plates (Ex VAT)£700.00£700.00
12 Months RFL (VAT Exempt)£360.00£360.00
DVLA First Registration Fee (VAT Exempt)£55.00£55.00
CVOTR*1 (Excl. VAT)£35,795.00£37,795.00
VAT 20%£7,076.00£7,476.00
Total On The Road Price (Inc. VAT)£42,871.00£45,271.00

*1 Commercial Vehicle On The Road Price

Special Paint Finishes
Double CabDouble Cab (Auto)
Basic Retail£600£600
VAT 20%£120£120
Total On The Road Price£720£720

*Commercial Vehicle On The Road Price

(No charge for Splash White on all models)
