2.2 ISUZU D-MAX UTILITY
The practical solution
Available from
£33,495 CVOTR + VAT
AVAILABLE FROM
£33,495 CVOTR + VAT

ENHANCED WORKHORSE

ENHANCED WORKHORSE

The Utility range is built to get things done without any hesitation. It puts in a shift while putting you at ease, as a 2.2-litre turbo diesel engine (Euro 6 compliant) delivers 400 Nm of torque to carry over a tonne of payload and pull 3.5 tonnes with smooth, responsive acceleration.

Together with Advanced Driver Assist Systems that elevate pick-up safety to another level and smart features like wireless Apple CarPlay™ & Android Auto™ from the multi-function colour touchscreen that keep you well informed and high-quality speakers that keep you fully entertained, the 2.2 Isuzu D-Max delivers. Whatever you do, you’ll never find a pick-up that’s more driven.

Ready to test drive the 2.2 Isuzu D-Max Utility?

2.2 Turbo

diesel

VAT BACK

qualified

1 tonne

payload

3.5 tonnes

towing capacity

Features

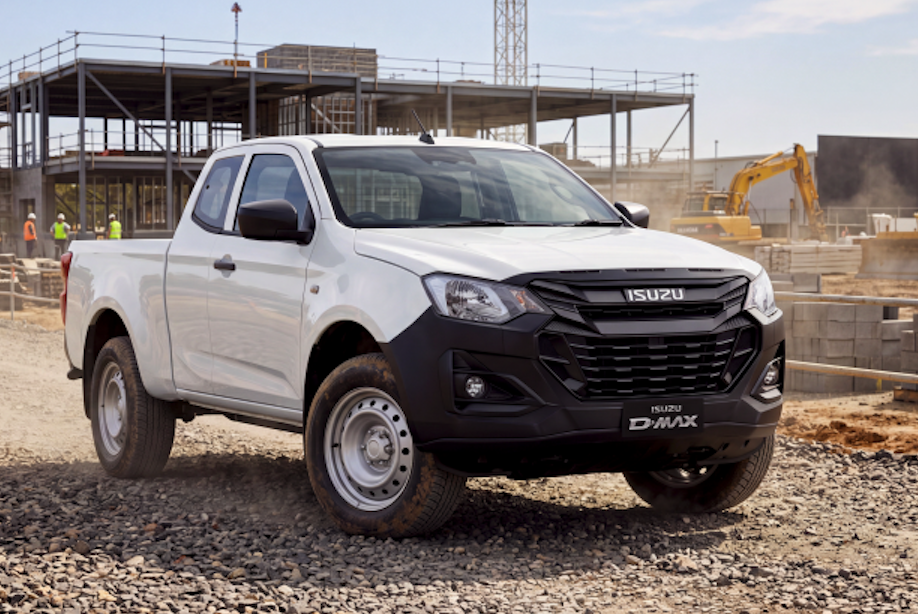

Engine

WE PUT MORE IN. YOU GET MORE OUT.

A 2.2-litre turbo diesel engine (Euro 6 compliant) delivers 400 Nm of torque to carry over a tonne of payload and pull 3.5 tonnes with smooth, responsive acceleration.

Meeting the latest emissions standards, the Isuzu D-Max now also enjoys better fuel economy, and an optional eight-speed automatic transmission gives more choice to suit your driving style.

Models are equipped with Rough Terrain Mode (RTM), an electronic off-road traction control aid that maximises torque-transfer and driveability in technical, slippery, and rough conditions.

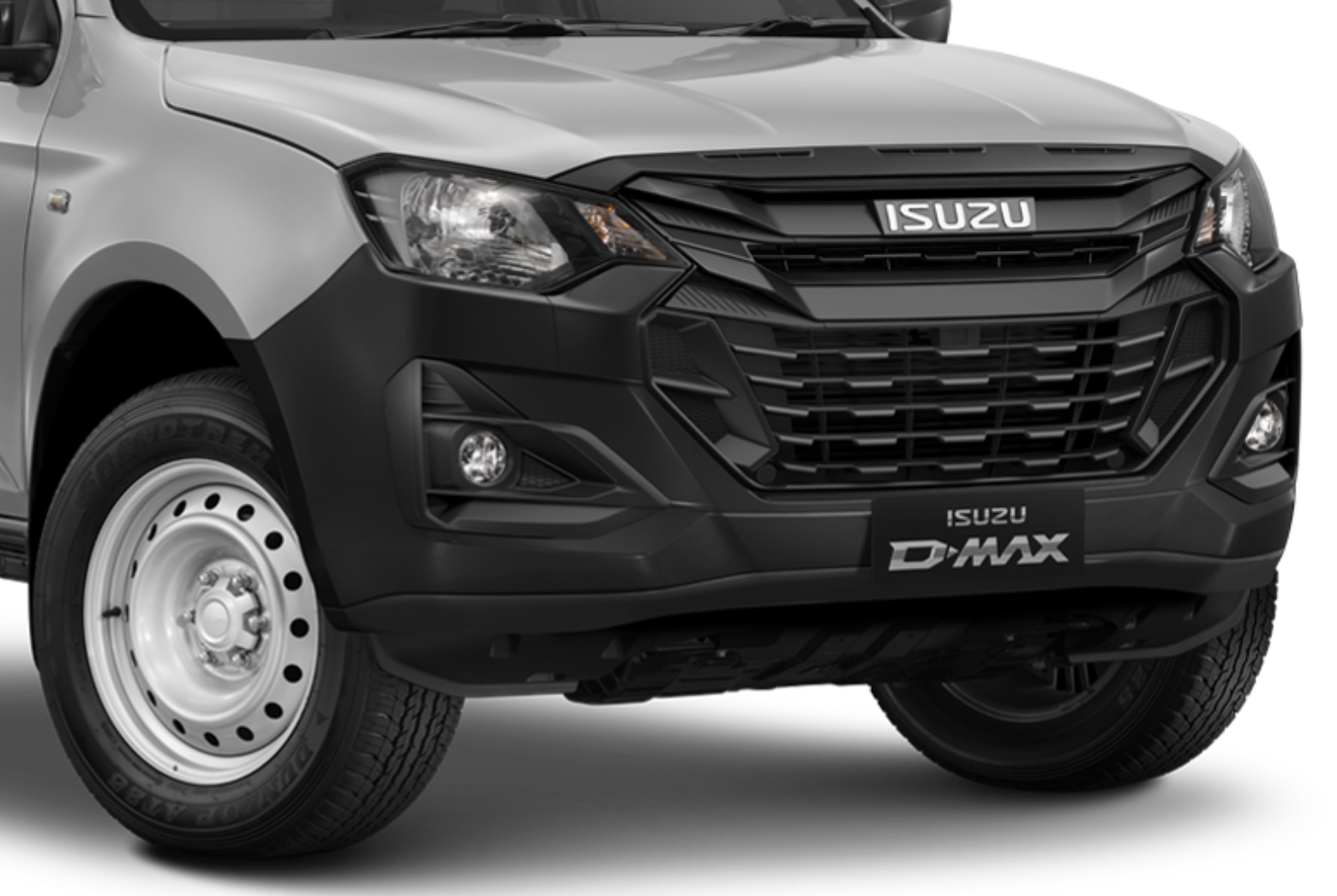

Exterior

ENHANCED STYLING

Bold accents and sleek lines give the reinforced Isuzu D-Max credibility from every angle, together with exterior enhancements that are not just for show.

The redesigned front radiator grille is complemented by newly designed  headlights and front fog lamp bezels. Upgraded alloy wheels available on the extended cab are finished off with Dunlop 265/60R18 low-rolling resistance tyres. New surround view cameras optimise safety by deploying digital cameras on the front radiator grille, tailgate and wing mirrors.

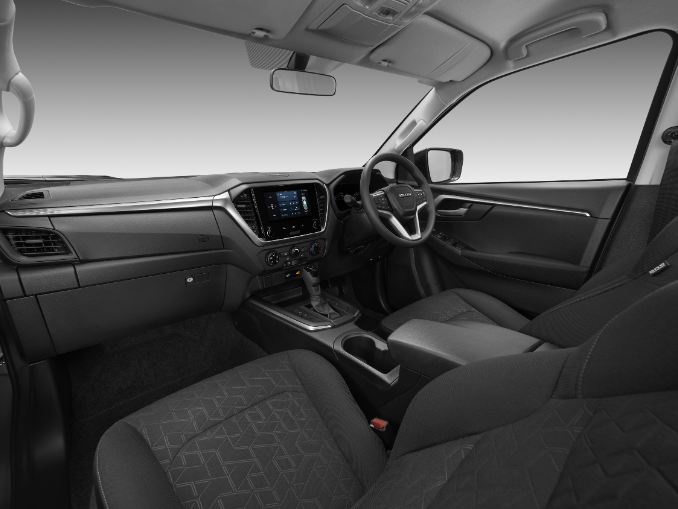

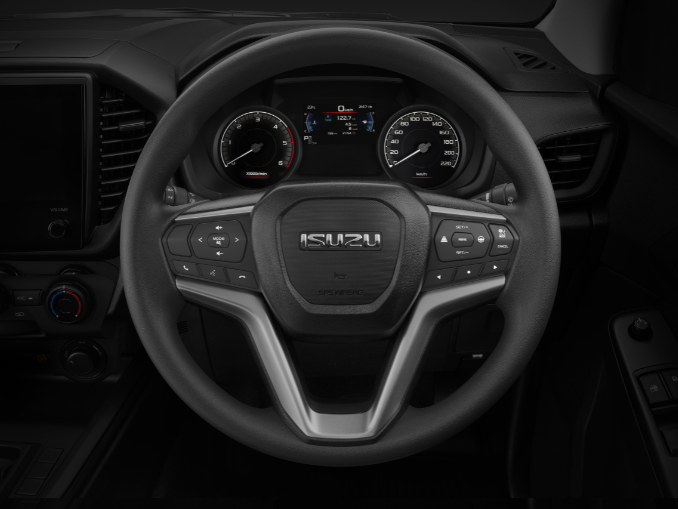

Interior

ENHANCED COMFORT

Inside the cabin, you’ll discover sophistication and convenience, with practical cloth upholstery, cup holders and ample storage.

Combined with a telescopic steering wheel and 6-way adjustable driver’s seat with lumbar support, the new Isuzu D-Max offers a tailored driving experience that enhances control and reduces fatigue.

Meanwhile, wireless Apple CarPlay™ & Android Auto™ from the multi-function colour touchscreen keep you well informed and high-quality speakers keep you fully entertained.

COLOURS & CABS

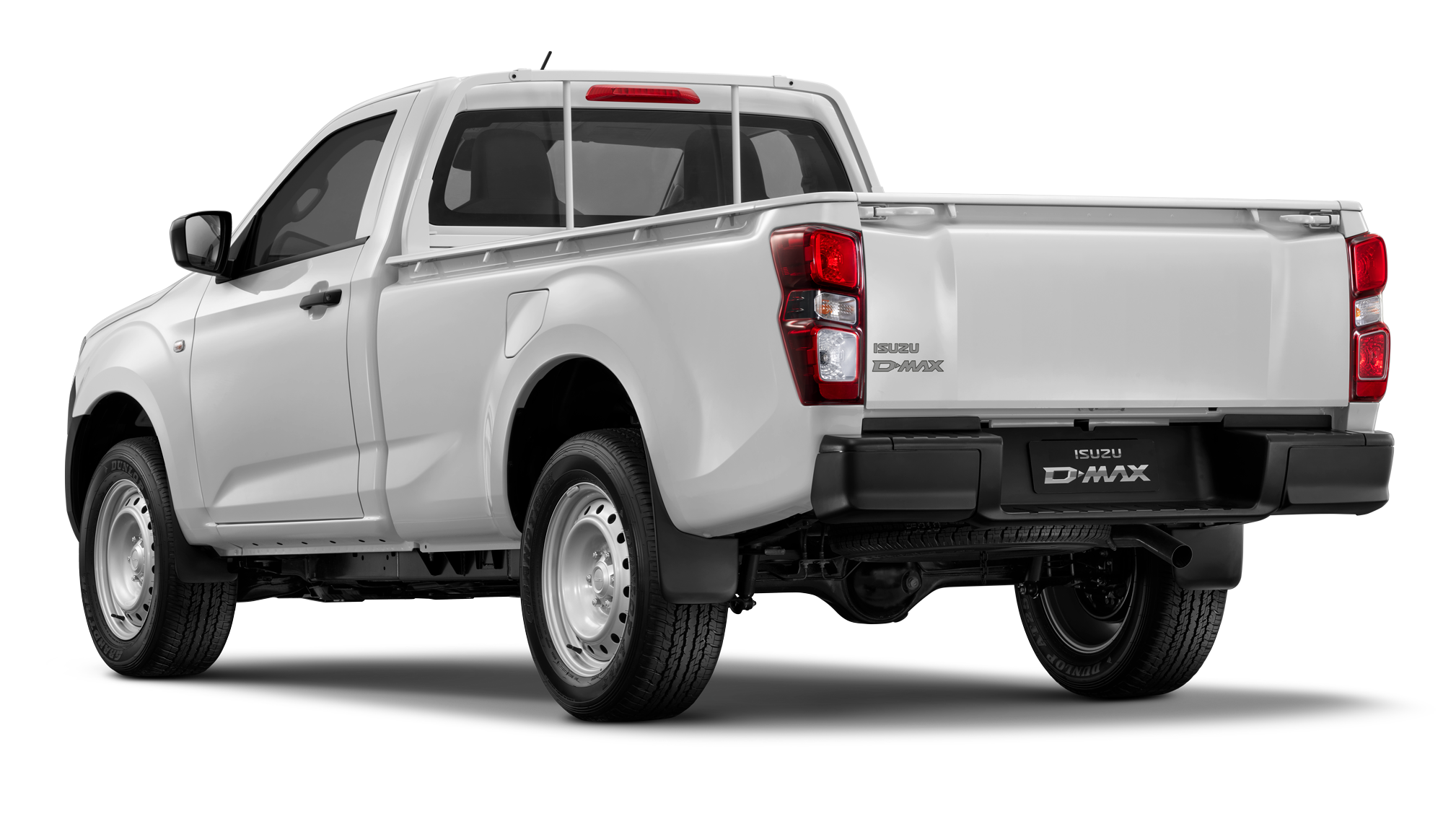

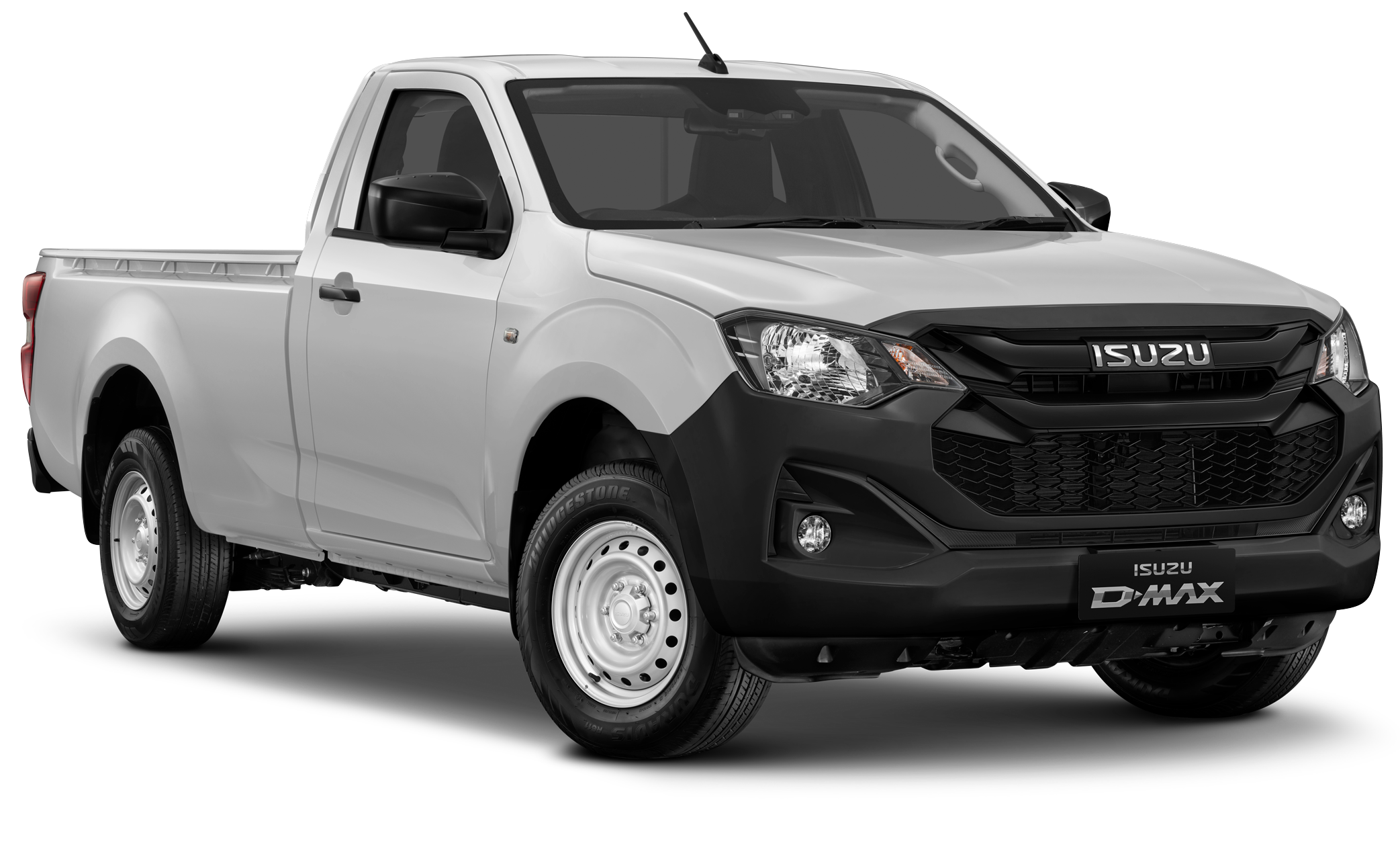

Isuzu D-Max Utility SPLASH WHITE Isuzu D-Max Utility SPLASH WHITE rear SPLASH WHITE

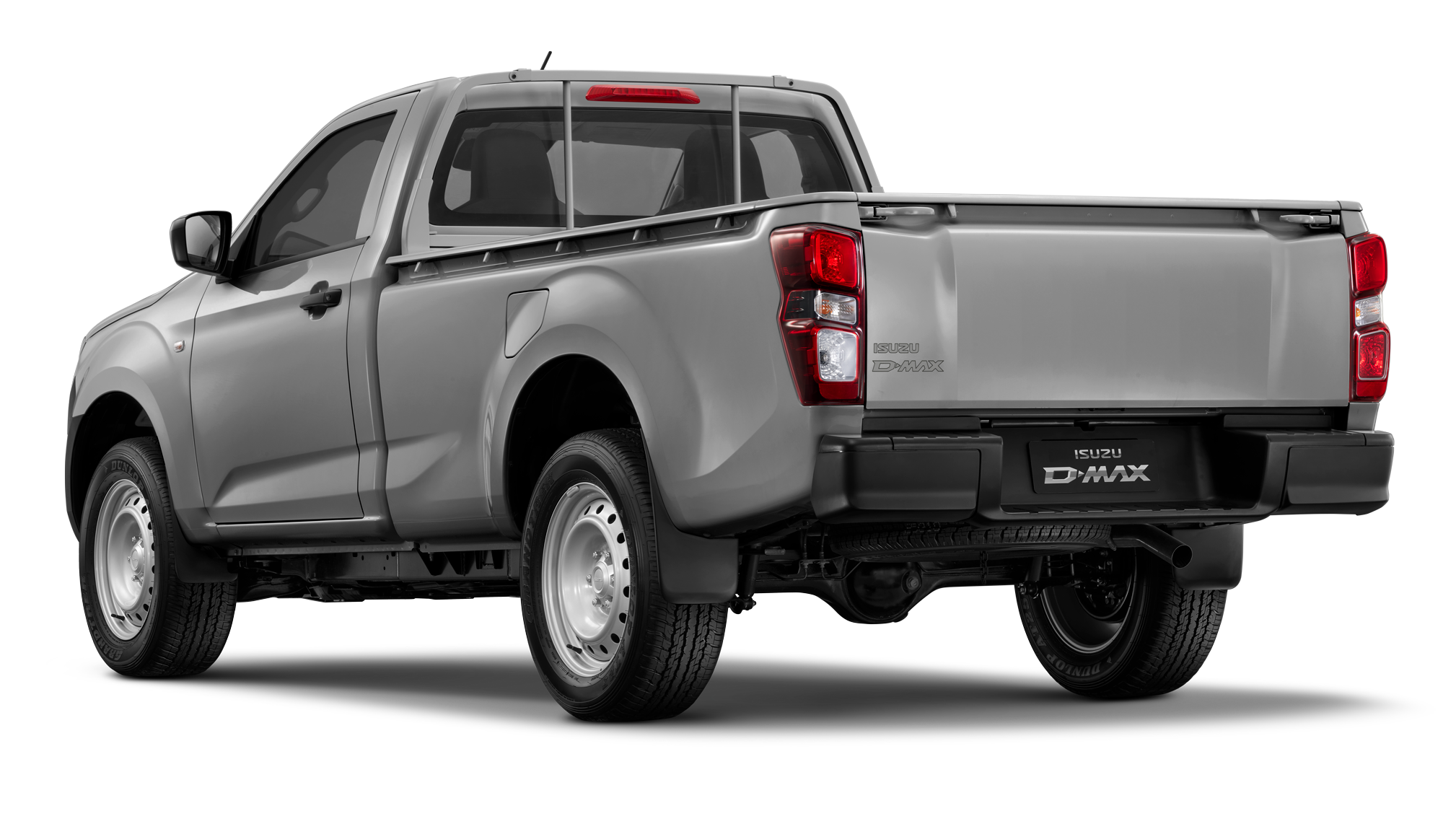

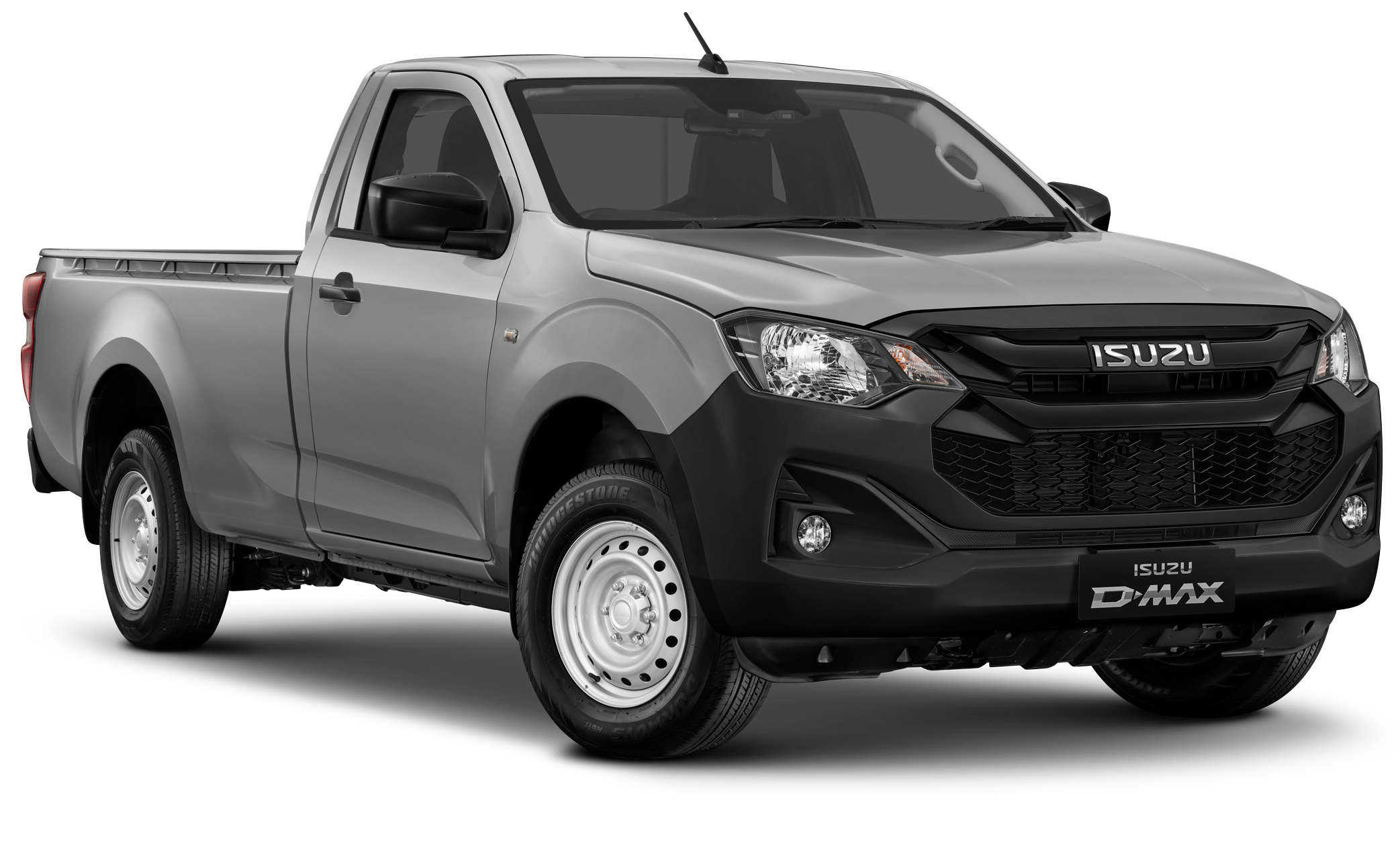

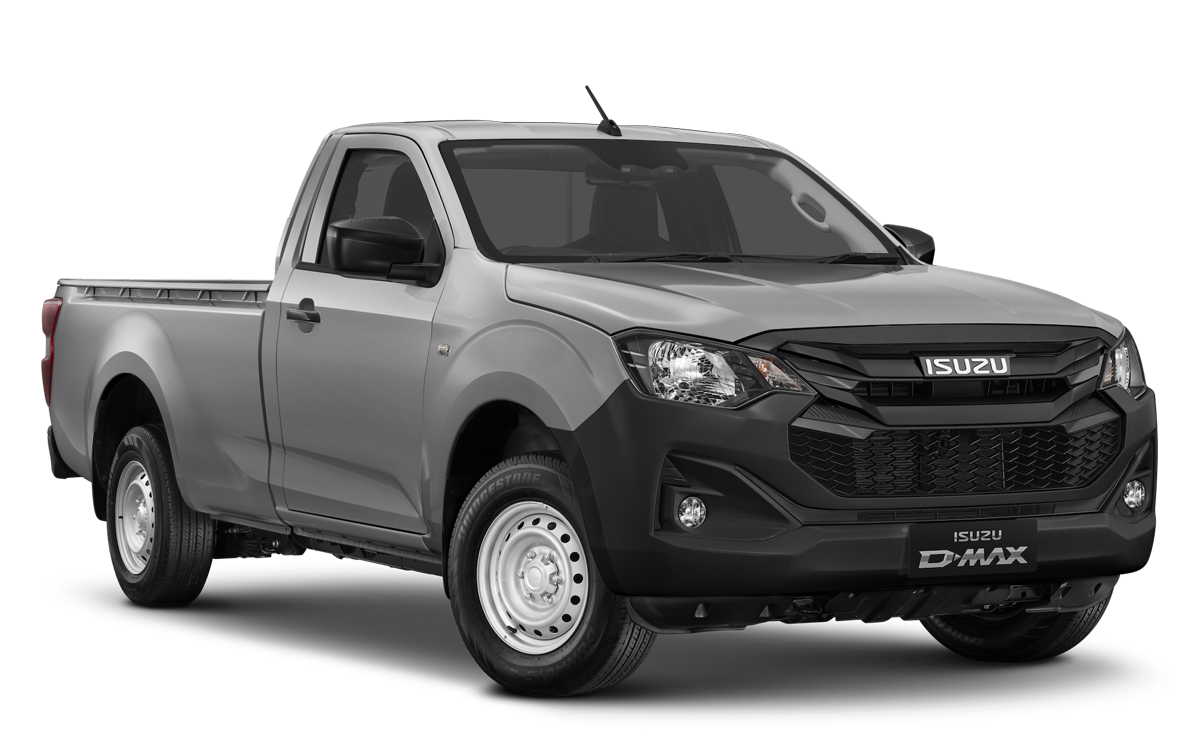

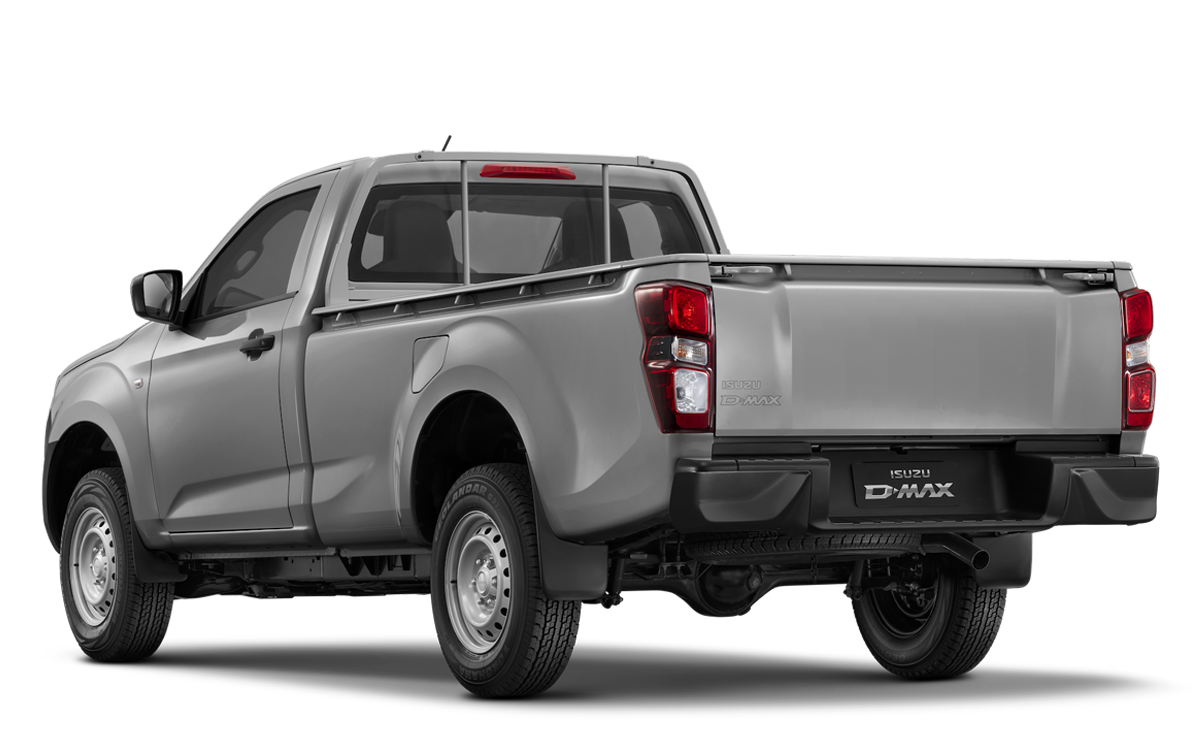

Isuzu D-Max Utility MERCURY SILVER Isuzu D-Max Utility MERCURY SILVER rear MERCURY SILVER

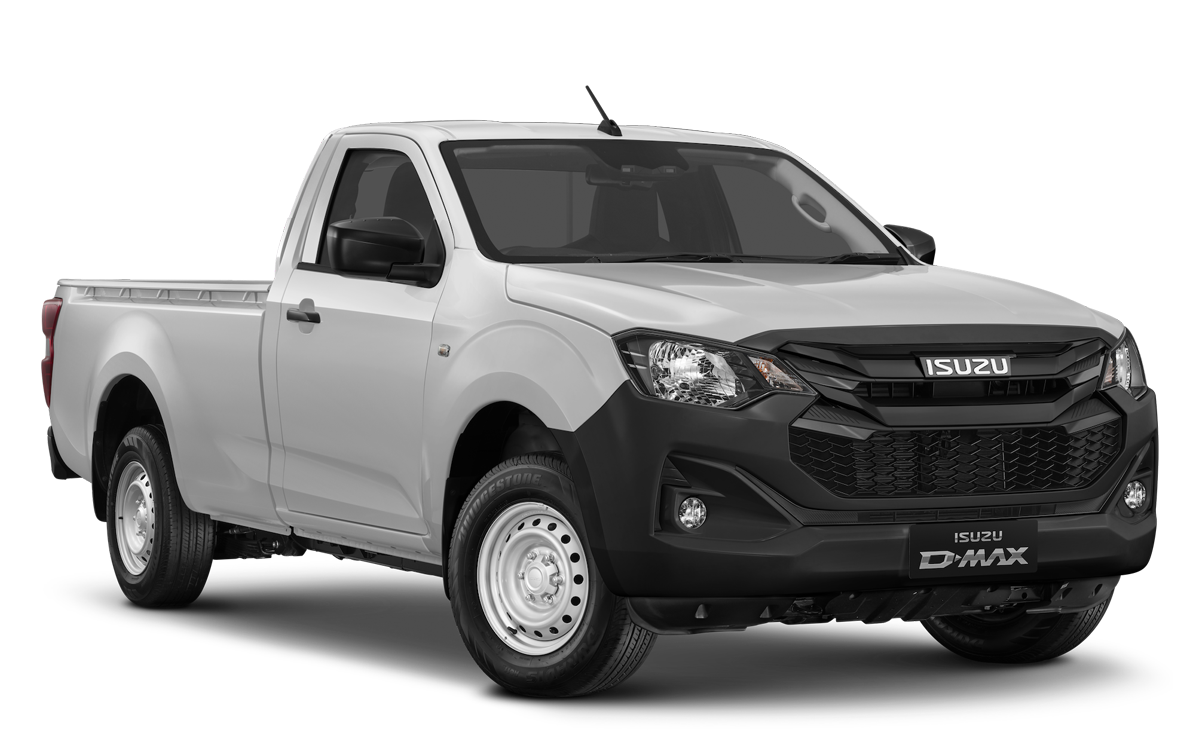

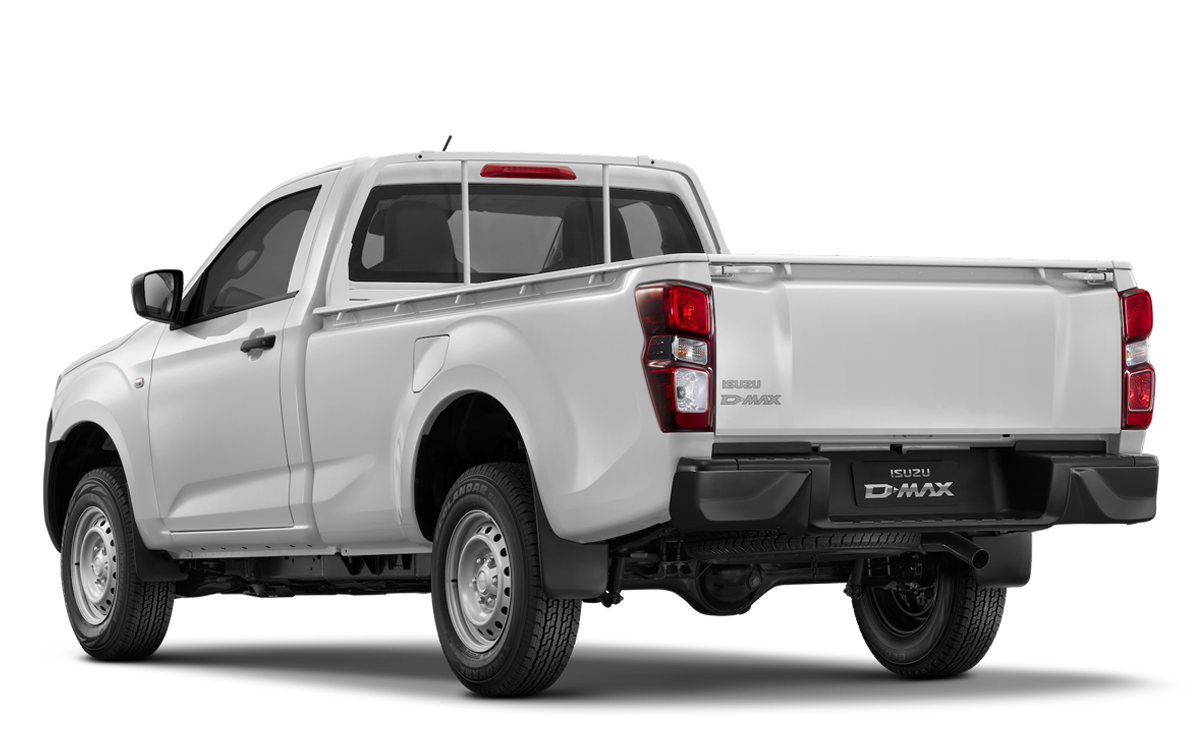

SINGLE CAB
Offering a load length of 2445mm, the single cab provides our largest load bed dimensions while providing space for two passengers in the front seats.

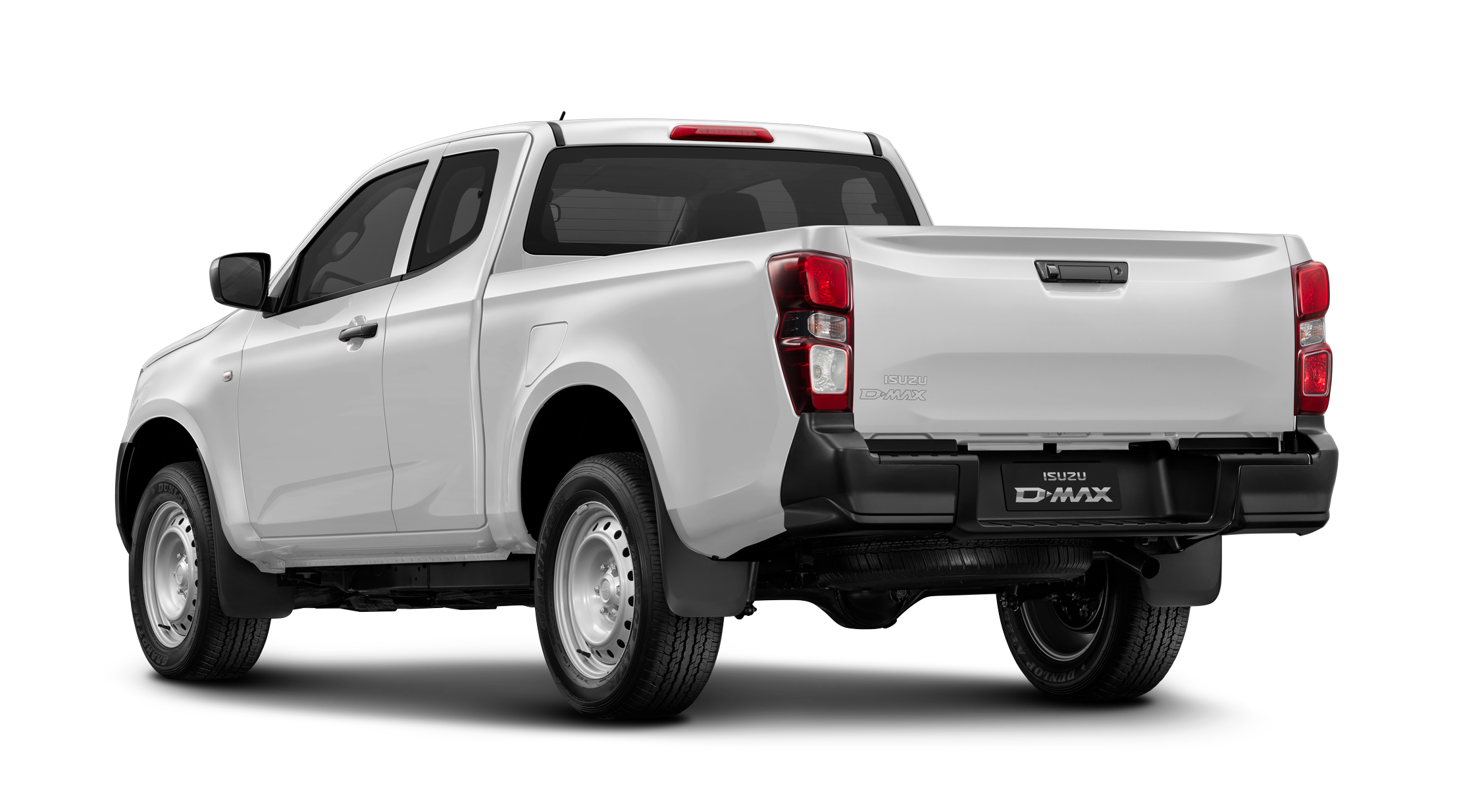

Isuzu D-Max Utility SPLASH WHITE Isuzu D-Max Utility SPLASH WHITE rear SPLASH WHITE

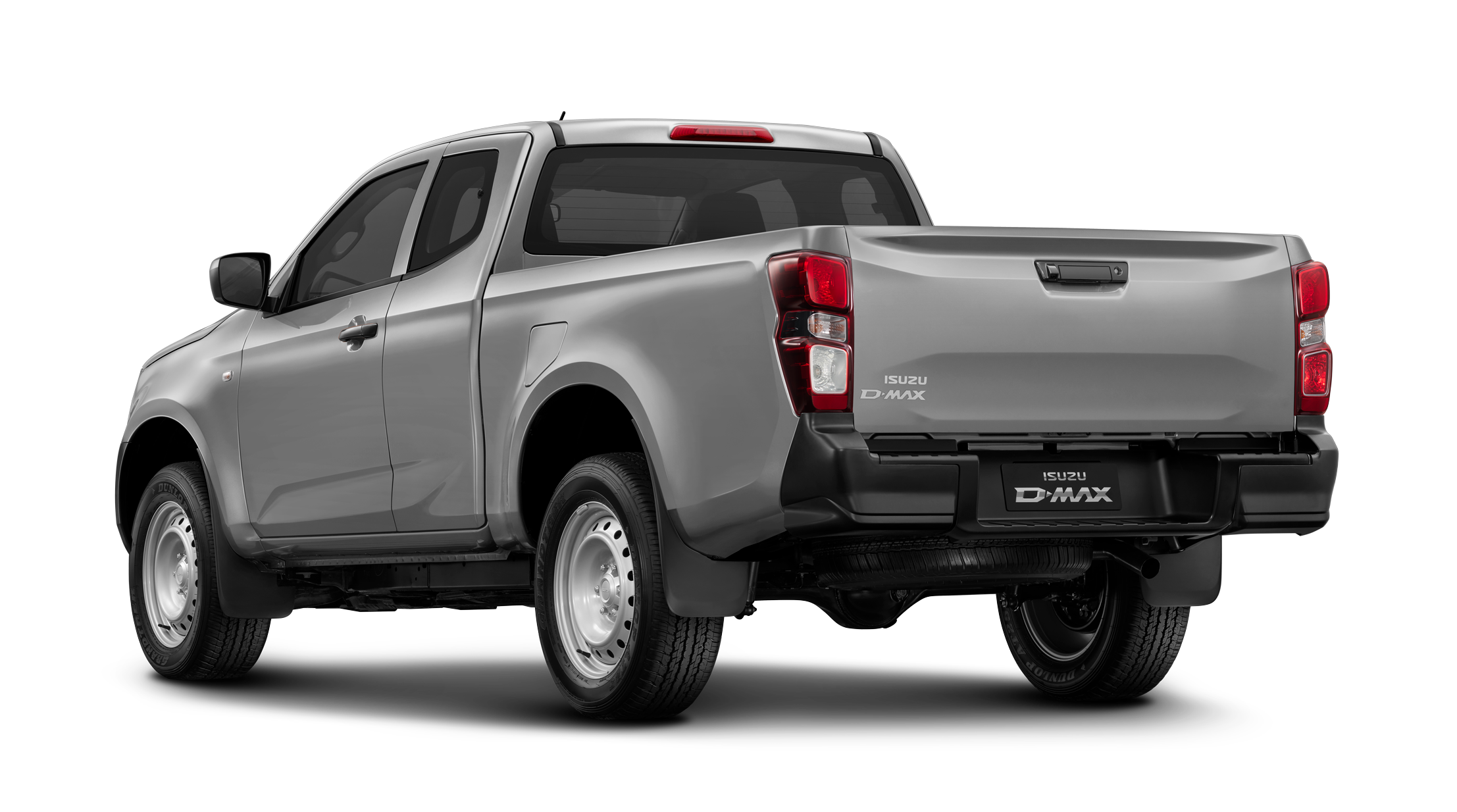

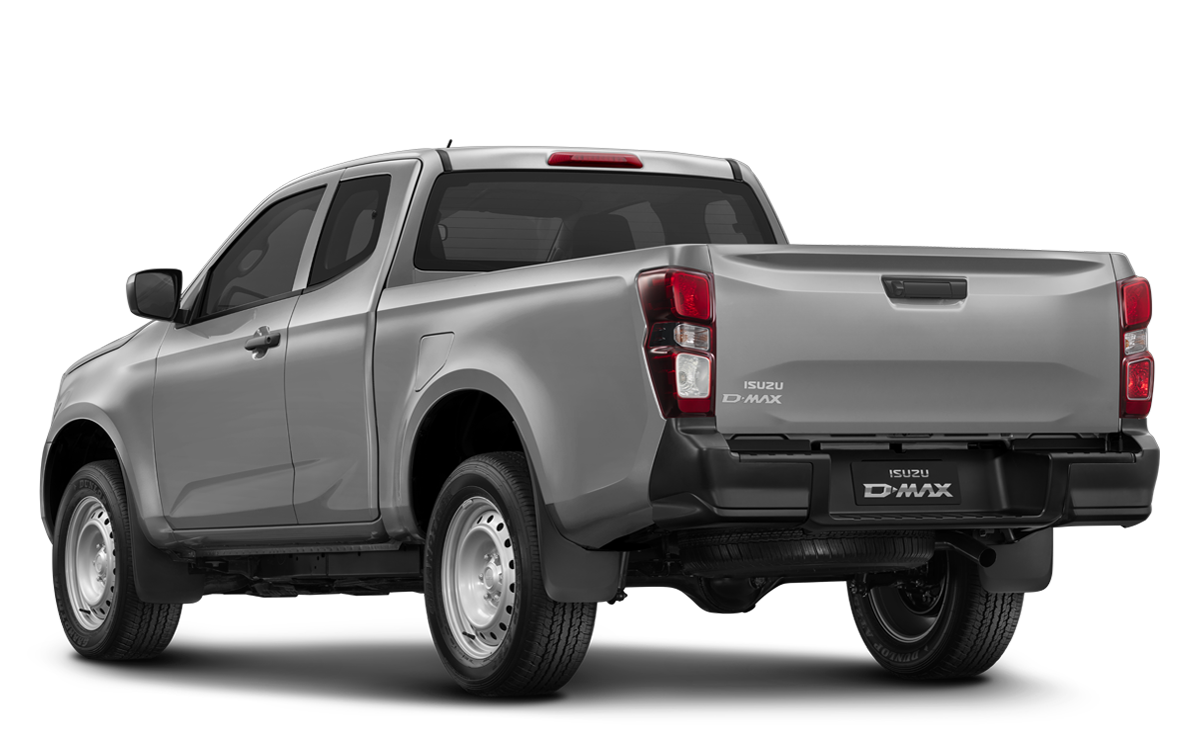

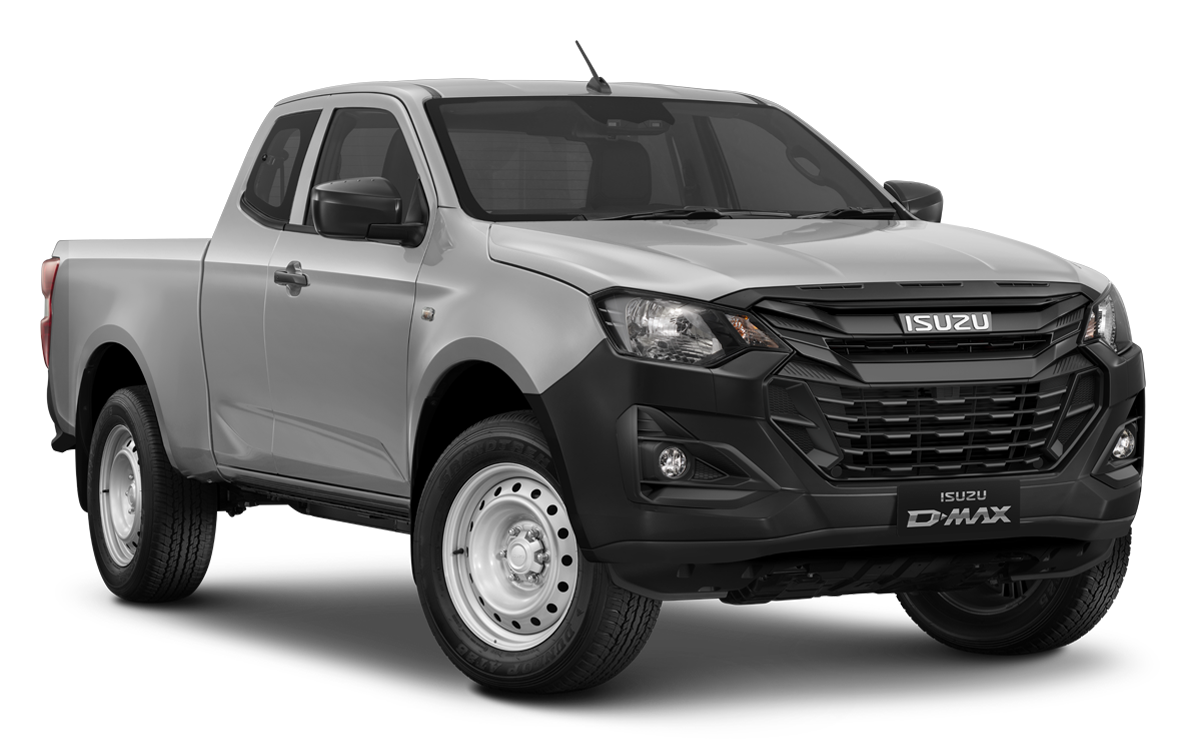

Isuzu D-Max Utility MERCURY SILVER Isuzu D-Max Utility MERCURY SILVER rear MERCURY SILVER

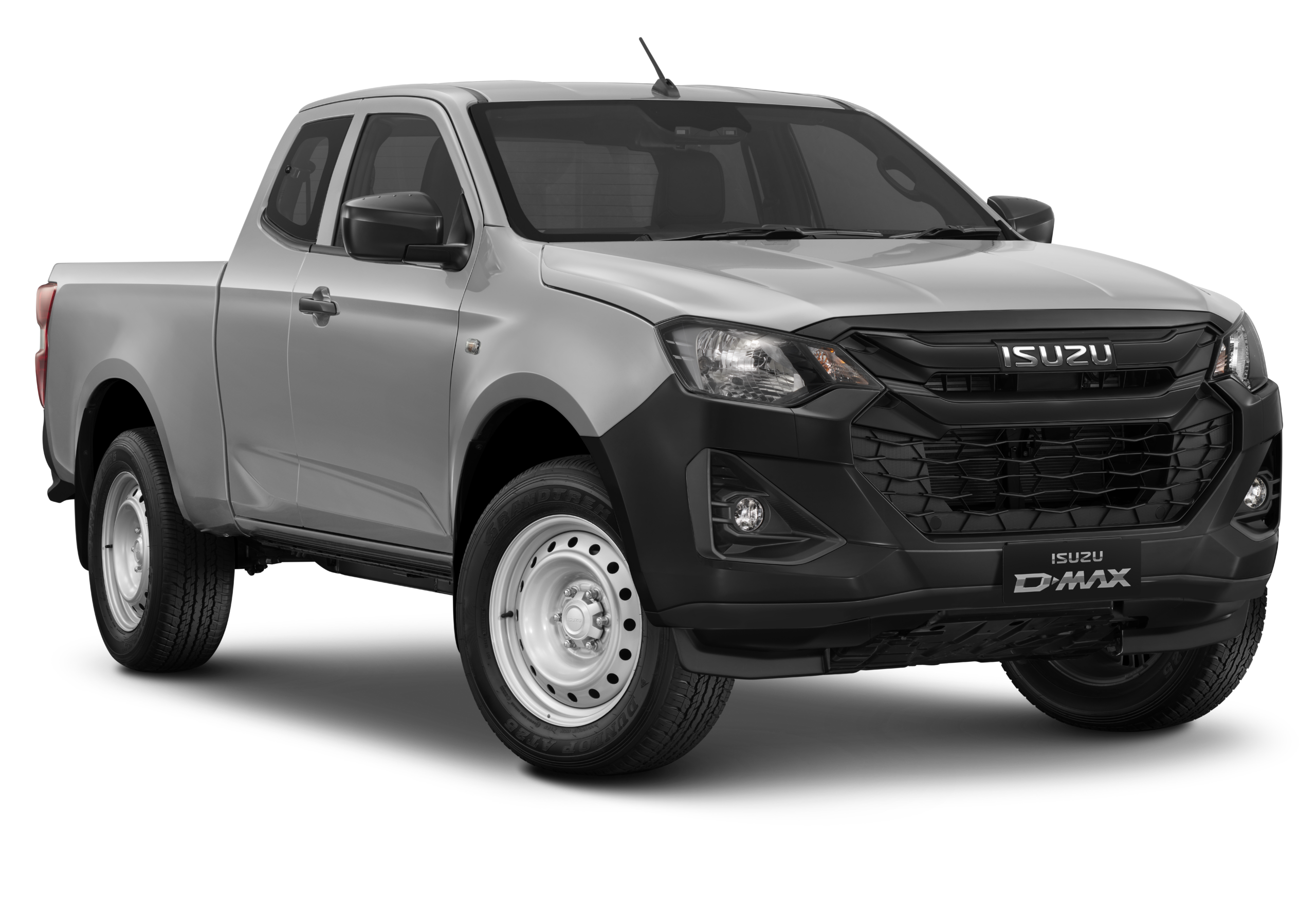

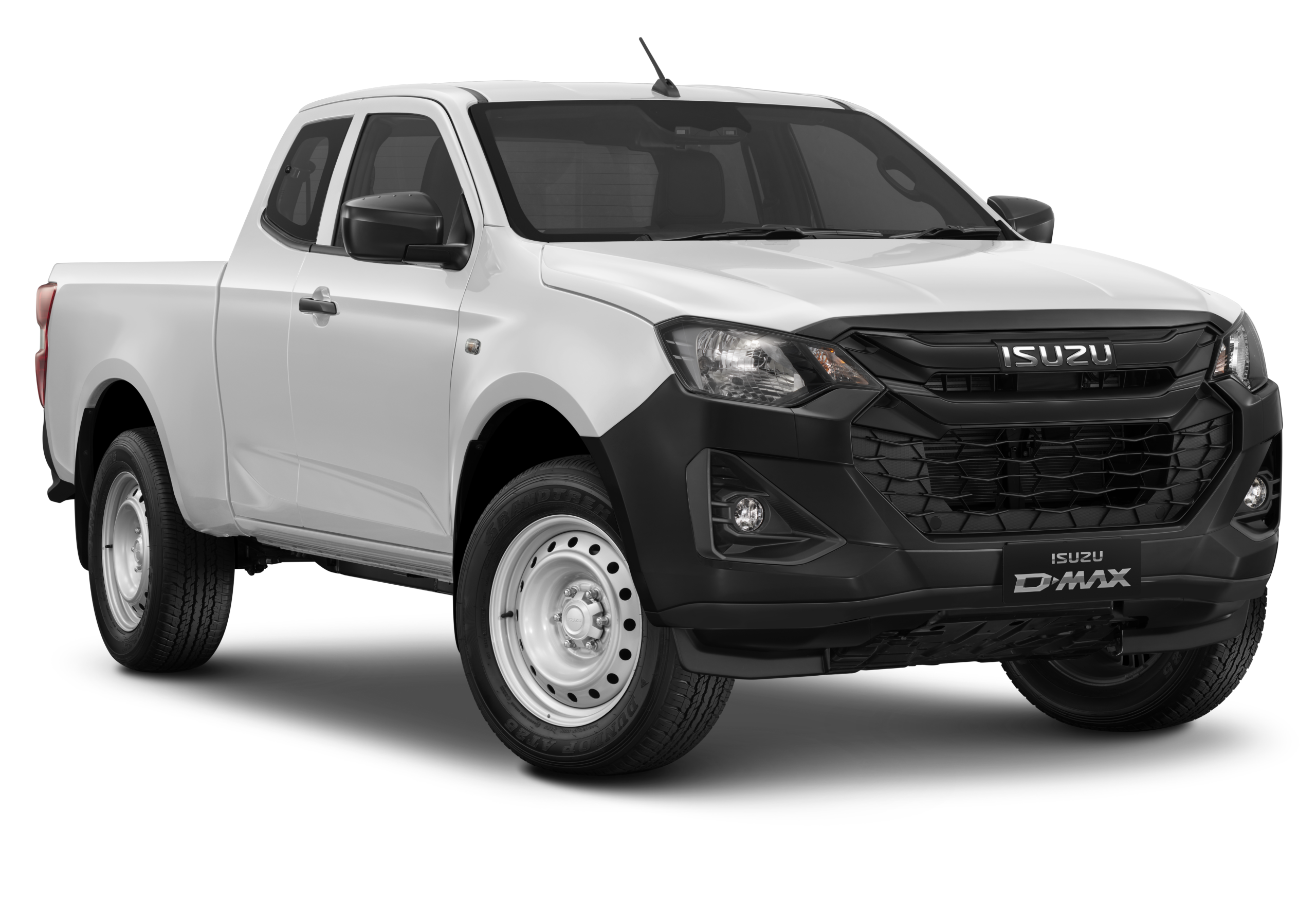

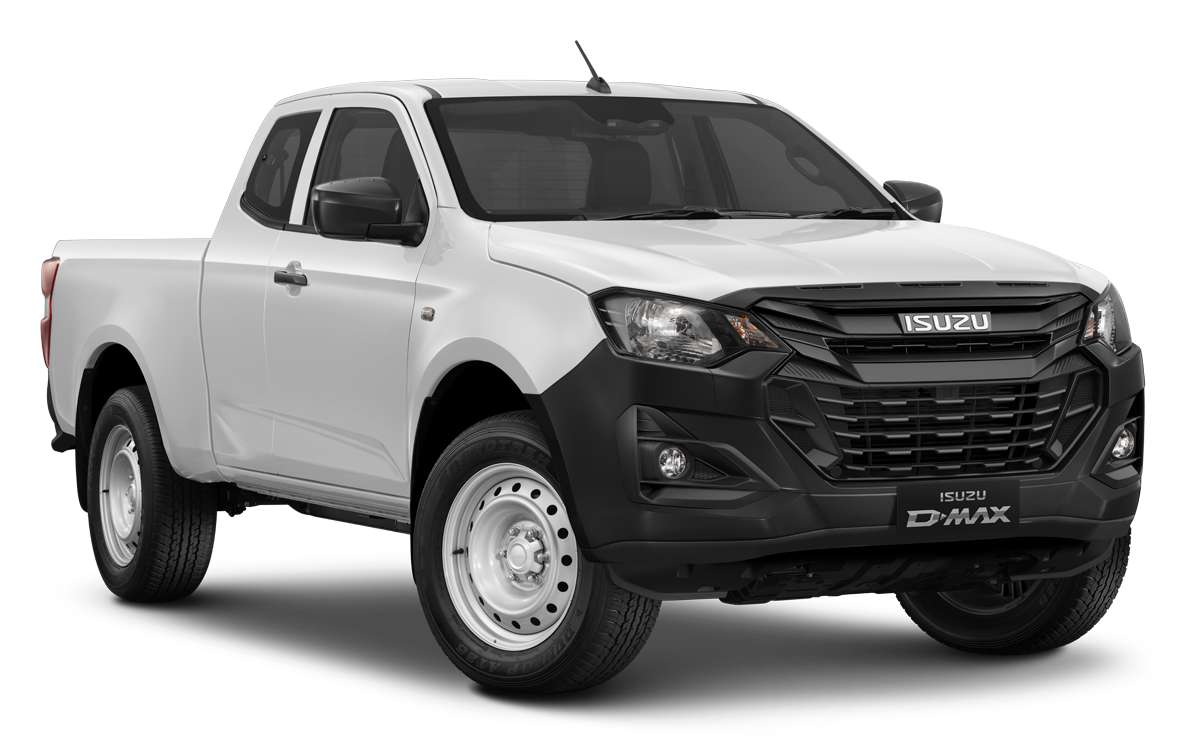

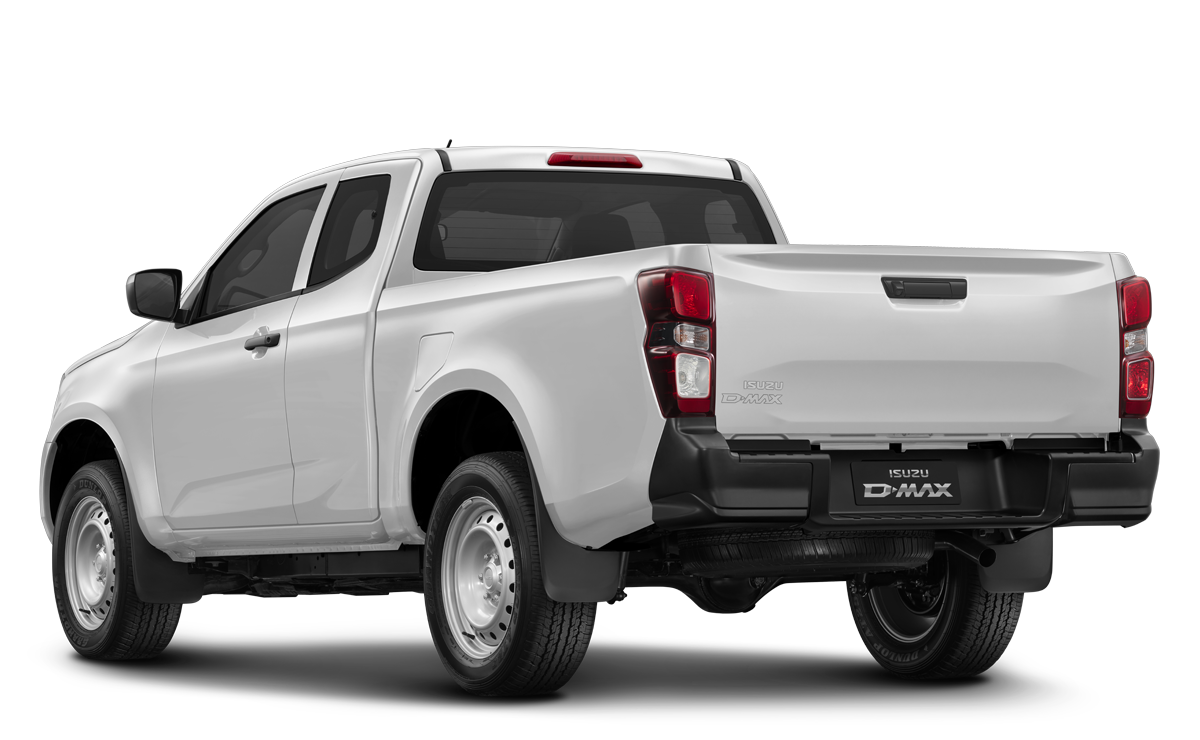

EXTENDED CAB
The extended cab offers our second largest load bed, at a length of 1940mm, and adds the flexibility to carry two additional passengers on folding rear seats.

Dimension & Specification

Exterior
Single CabExtended Cab
Halogen HeadlampsStandardStandard
Automatic Headlamp with On-Off Automatic High BeamStandardStandard
Headlamp Left "On" Audible WarningStandardStandard
Follow Me Home HeadlampStandardStandard
Halogen Daytime Running LightsStandardStandard
Rear Fog LampStandardStandard
Front Fender with Side Turn LampStandardStandard
Center High Mount Stop LampStandardStandard
Powered Windows With Jam ProtectionStandardStandard
Cargo Box with Front & Rear Inner Hooks (4x)-Standard
Cargo Box with Outer HookStandard-

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Wheels
Single CabExtended Cab
Tyres: 205R16C 110/108S : G97A [Yokohama]Standard-
Tyres: 265/60R18 110H : A/T Pattern AT31 [Dunlop]-Standard
16" Steel Wheel: 16"X6.5J-41Standard-

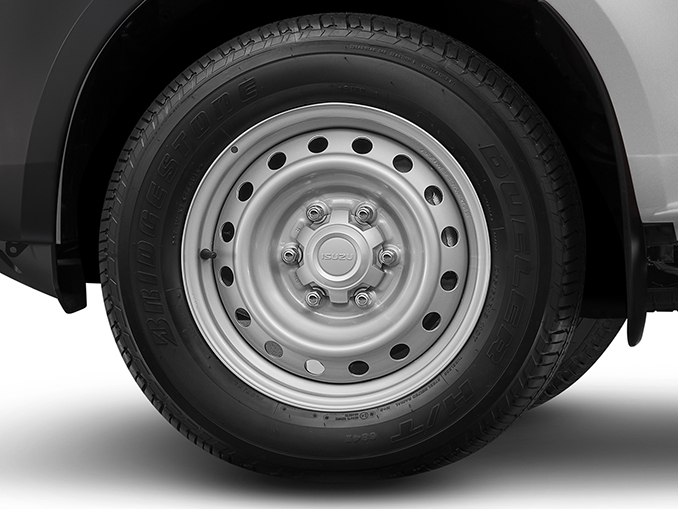

18" Steel Wheel: 18"X7.5J-33-Standard
Full Size Spare Wheel - SteelStandardStandard
Tyre Pressure Monitoring Sensor (TPMS)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Interior
Single CabExtended Cab
Utility Box On Glove BoxStandardStandard
2 Cup HoldersStandardStandard
Centre Storage Compartment with LidStandardStandard
Reading LampStandardStandard
Sun Glasses HolderStandardStandard
2x Ignition Keys with Keyless & Immobilizer FunctionStandardStandard
Front Reading LampStandardStandard
Powered Windows with Jam ProtectionStandardStandard
Rear Flipper Window-Standard
6-Way Adjustable Driver’s Seat (Manual) / Passenger 4-Way (Manual)StandardStandard
Driver’s Seat Lumbar Support (Manual)StandardStandard
Rear Jump seat with Folding Cushion-Standard
Integrated Front HeadrestsStandardStandard
New Cloth UpholsteryStandardStandard
Foot Rest On Driver SideStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Entertainment
Single CabExtended Cab
7" Driver Instrument Cluster Colour DisplayStandardStandard

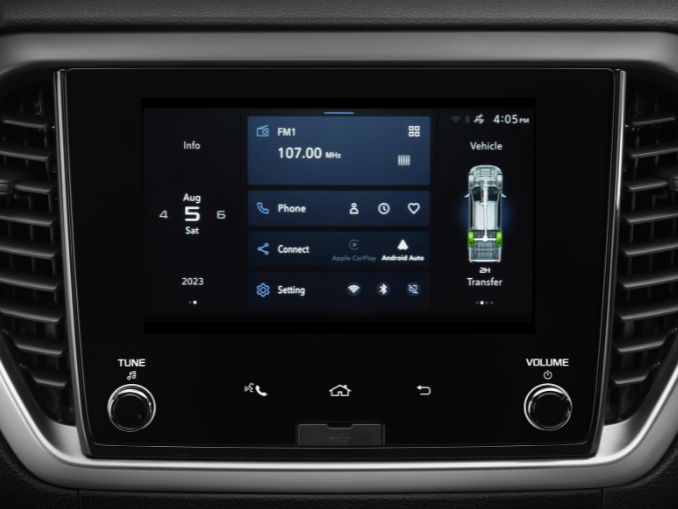

8" Centre Display Audio, with Android Auto™ / Apple Carplay™, with WiFi & BluetoothStandardStandard
AM, FM & DAB RadioStandardStandard
12V Socket at FrontStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Comfort & Convenience
Single CabExtended Cab
Anti-Glare Inside Rear View Mirror with Day & Night SwitchStandardStandard
Grab Handles at Front - Fixed TypeStandardStandard
Separated Coat Hooks-Standard
Driver & Passenger Sun VisorStandardStandard
Driver Sun Visor with Card HolderStandardStandard
Auto Wiper with Rain Sensor SystemStandardStandard
Remote Locking & Unlocking (Via Key Buttons) StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Climate Control
Single CabExtended Cab
Manual A/CStandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

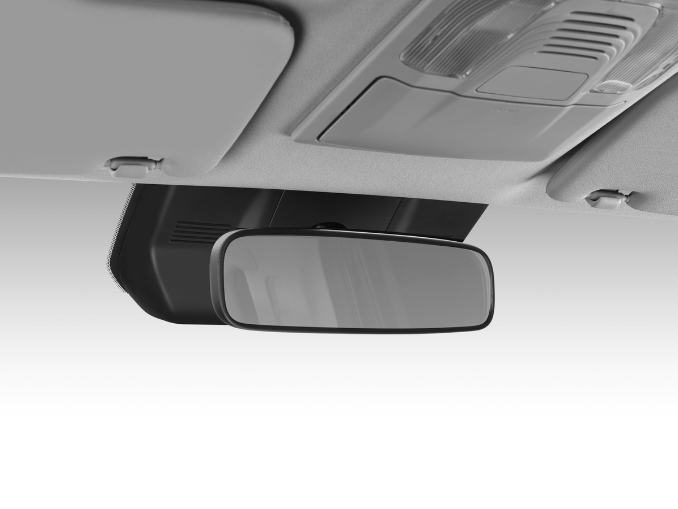

Advanced Driver Assist Systems*3
Single CabExtended Cab
Rear View CameraStandardStandard
AEB (Autonomous Emergency Brake)StandardStandard
FCW (Forward Collision Warning)StandardStandard
BOA (Brake Over Ride Accelerator)StandardStandard
peed Assistance System (Manual Speed Limiter, Traffic Sign Recognition, Intelligent Speed Limiter)StandardStandard
Lane Support System (Lane Departure Warning / Lane Departure Prevention / Lane Keep Assist System / Attention Assist)StandardStandard
Intelligent Adaptive Cruise Control (Iacc)StandardStandard
Driver MonitoringStandardStandard
Ess (Emergency Stop Signal)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Safety & Security
Single CabExtended Cab
7 x AirbagsStandardStandard
Front Passenger Airbag Switch-OffStandardStandard
Front Seatbelts (3 Points) with Pre-TensionerStandardStandard
Front Seats Seatbelt Unfastened ReminderStandardStandard
Front Passenger Seat with Occupant Detection SensorStandardStandard
Emergency Call (ECALL)StandardStandard
Anti-Theft System with Alarm, Dead Lock, ImmobiliserStandardStandard
Key Left in Cabin Audible WarningStandardStandard
Remote Key Auto Re-LockStandardStandard
Auto Release Door Lock After Crash (When Airbag Deploy)StandardStandard
Front Brake Power Disc : 16Standard-
Front Brake Power Disc : 17"-Standard
Rear Brake Power Drum : 15"StandardStandard
ABS with EBD / Brake AssistStandardStandard
Electronic Stability Control (ESC) With Hill Start Assist (HSA) / Traction Control / TSC & Rough Terrain Mode & Control SwitchStandardStandard
HDC (Hill Descent Control) with SwitchStandardStandard
Multi Collision Brake (MCB)StandardStandard

*1 Leather and other materials.

*2 Driver side has auto up/down function, with pinch protection and timer.

*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.

*4 Manual & Intelligent Speed Limiter.

*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.

*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.

Engine
Single CabExtended Cab
Engine TypeRZ4FRZ4F
Arrangement Cylinders4, In line4, In line
Firing Order1-3-4-21-3-4-2
Bore mm83.0083.00
Stroke mm100.00100.00
Compression15.915.9
Engine Capacity cm321642164
Idle Speed750+/- 25750+/- 25
Fuel Tank Capacity Litres (Gal)76 (16.72 )76 (16.72 )
AdBlue tank capacity litres (Gal)14.5 (3.19)14.5 (3.19)

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Performance
Single CabExtended Cab
Net Power kw120@ 3600120@ 3600
Net Power PS @ rpm163.15 @3600163.15 @3600
Torque Nm @ rpm400 @ 2000 - 2500400 @ 2000 - 2500
Torque lb f ft295 @ 2000 - 2500295 @ 2000 - 2500
0-62 mph seconds1212
Maximum Speed (mph)112112
Acceleration (0-62mph)12 seconds12 seconds

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Gear Ratios
Single CabExtended Cab
14.5084.508
22.4492.449
31.1741.174
41.0001.000
50.7360.736
60.5780.578
Reverse4.1934.193
Final Drive3.9093.909

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Fuel Consumption WLTP (l/100km)*1
Single CabExtended Cab
Low10.410.4
Mid8.08.0
High7.17.1
Extra-High8.78.7
Combined8.38.3

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

CO2 Emissions g/km 1
Single CabExtended Cab
LOW273273
MID210209
HIGH186185
EXTRA-HIGH228228
COMBINED217217

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Dimensions
Single CabExtended Cab
Length mm53205280
Width mm18101870
Height mm17701790
Front Overhang mm905905
Rear Overhang mm12901250
Wheelbase mm31253125
Ground Clearance mm (Rear Axle)220240
Approach Angle (deg.)2930.5
Departure angle (deg.)22.324.2
Ramp Angle (deg.)21.4022.9
Wading depth800800
Track front mm15551570
Track rear mm15551570
Internal Bed Length (mm)24451940
Min. Turning Circle (m) dia. (Radius) Kerb to Kerb12.5012.50

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Weights
Single CabExtended Cab
Kerb Weight kg19201995
Gross Vehicle Weight kg31003100
Payload kg11801105
Max Front Axle kg14501450
Max Rear Axle kg19101910
Trailer Weight Braked kg35003500
Trailer Weight Unbraked kg750750
Nose Weight kg245245
Gross Train Weight kg60006000

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Wheels & Tyres
Single CabExtended Cab
Tyres205R16C265/60R18
WheelsSteel (16 x 6.5J)Alloy (18 x 7.5J)

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Insurance Groups
Single CabExtended Cab
Insurance group40A40A

*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.

*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.

Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.

Prices
Single CabExtended Cab
Basic Retail (Excl. VAT)£32,380.00£33,180.00
Delivery to Dealer Premises & No. Plates (Excl. VAT)£700.00£700.00
12 Months RFL (VAT Exempt)£360.00£360.00
DVLA First Registration Fee (VAT Exempt)£55.00£55.00
CVOTR*1 (Excl. VAT)£33,495.00£34,295.00
VAT 20%£6,616.00£6,776.00
Total On The Road Price (Inc. VAT)£40,111.00£41,071.00

*1 Commercial Vehicle On The Road Price

Special Paint Finishes
Single CabExtended Cab
Basic Retail£600£600
VAT 20%£120£120
Total On The Road Price£720£720

*Commercial Vehicle On The Road Price

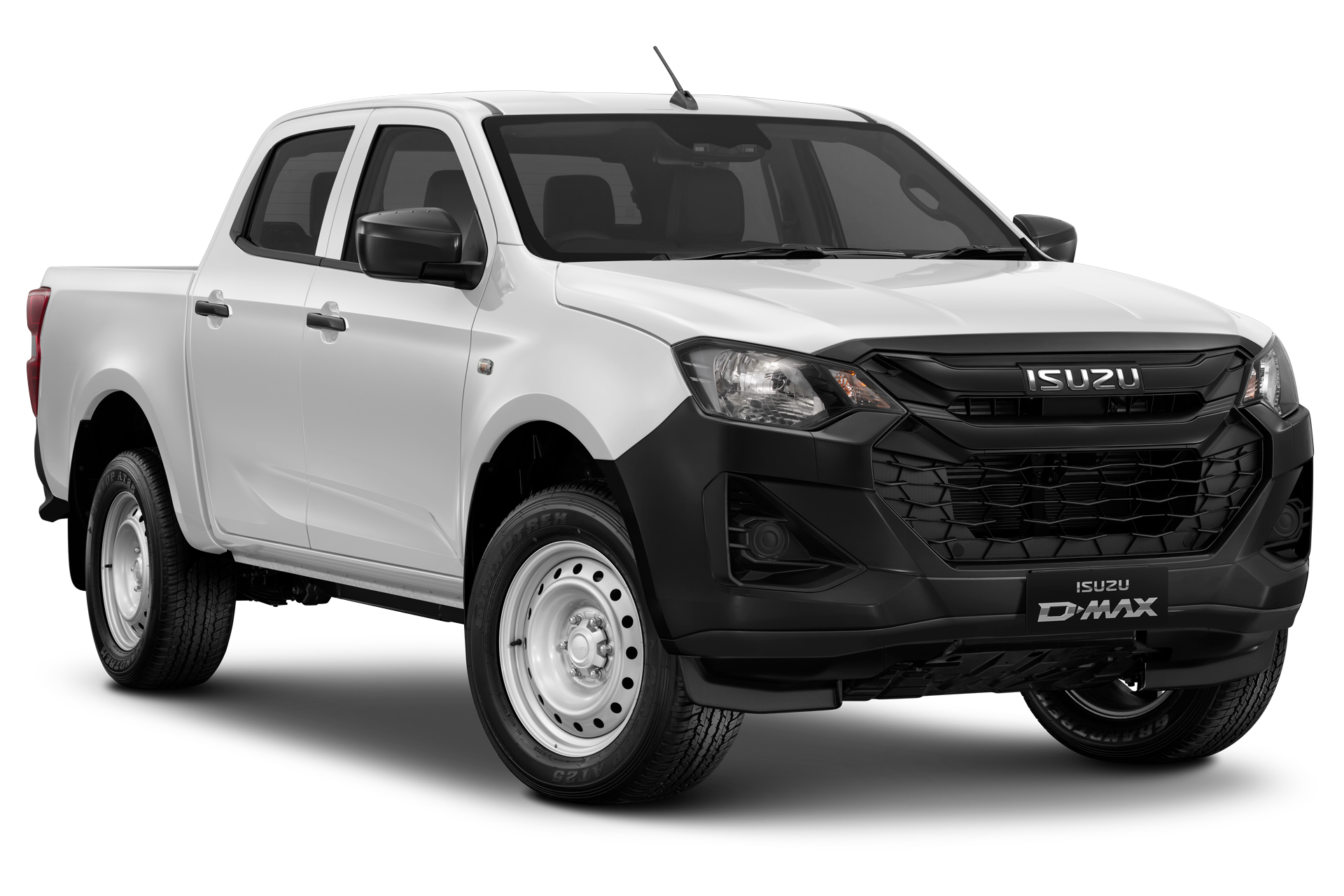

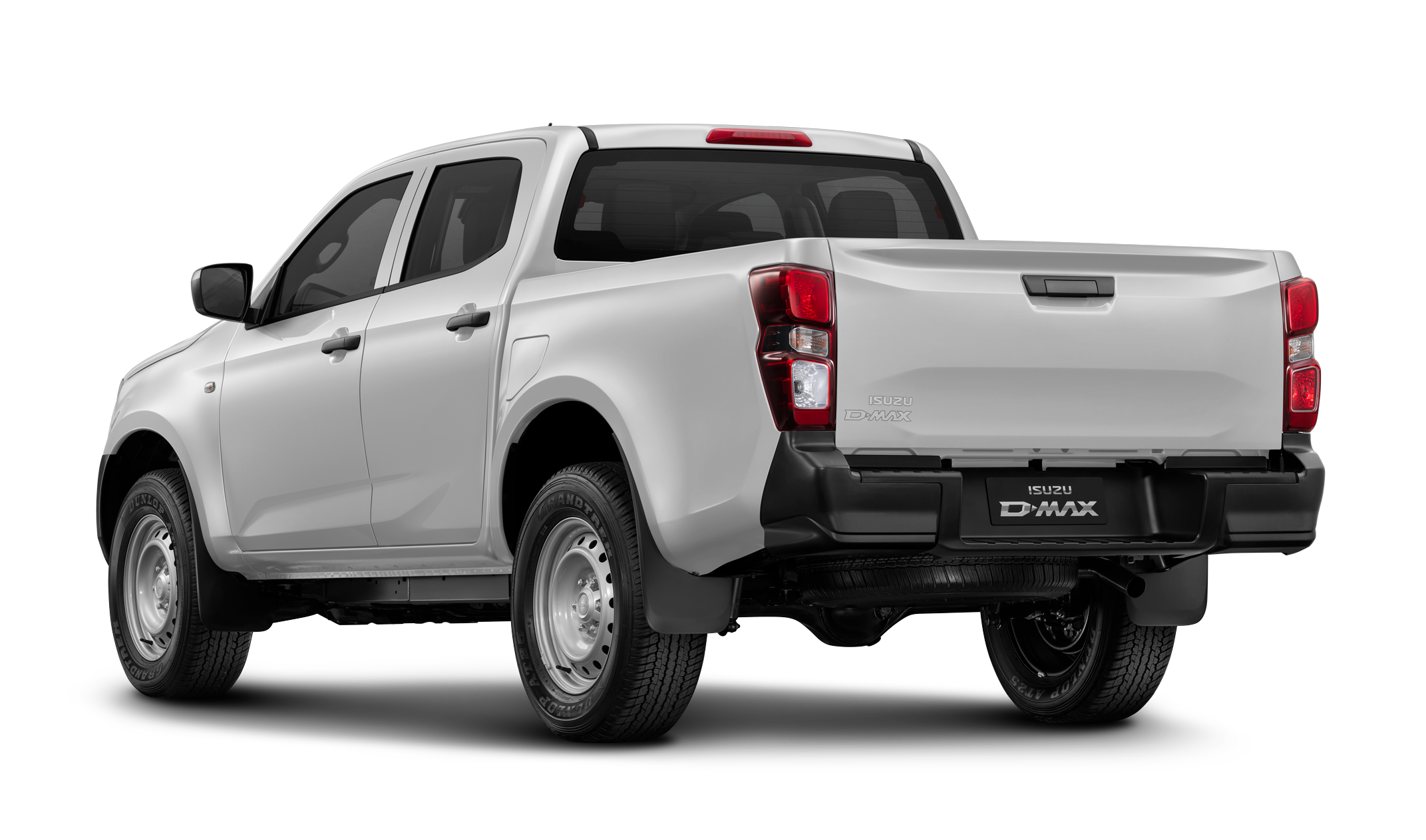

(No charge for Splash White on all models)
